A complete used 5000L brewery equipment package based on a 4-vessel 50HL brewhouse, 9 × 5000L conical fermenters and one 5000L bright beer tank, with ice water and cold water systems, CIP and control – ideal as a refurbished used 50HL brewery system for regional and industrial breweries.
This configuration is based on a full 5000L brewhouse equipment list originally designed as a new 4-vessel 50HL system – lauter tun, mash tun, boiling kettle, whirlpool and 5000L hot water tank – combined with 9 × 5000L conical fermenters, a 5000L bright beer tank, 8000L ice water tank, 5000L cold water tank, dual 15P chillers, CIP and manual control. We adapt that engineering into a complete used 5000L brewery equipment package for B2B buyers who need serious capacity with a second-hand budget. :contentReference[oaicite:1]{index=1}
Modernized used 5000L microbrewery equipment built on an industrial MICET design, adapted to your real project.
Based on a dedicated 4-vessel design: lauter tun, mash tun, boiling kettle and whirlpool with a 5000L hot water tank – not a mix of improvised tanks.
Includes 9 × 5000L fermenters, 1 × 5000L bright tank, 8000L ice water tank, 5000L cold water tank and dual 15P chillers for stable production.
All major vessels, jackets, pumps and valves are inspected, cleaned and selectively renewed for hygienic, reliable operation in a used 50HL brewery.
Combine core used 5000L brewery equipment with new controls, pumps or auxiliary systems to balance CAPEX, performance and future upgrades.

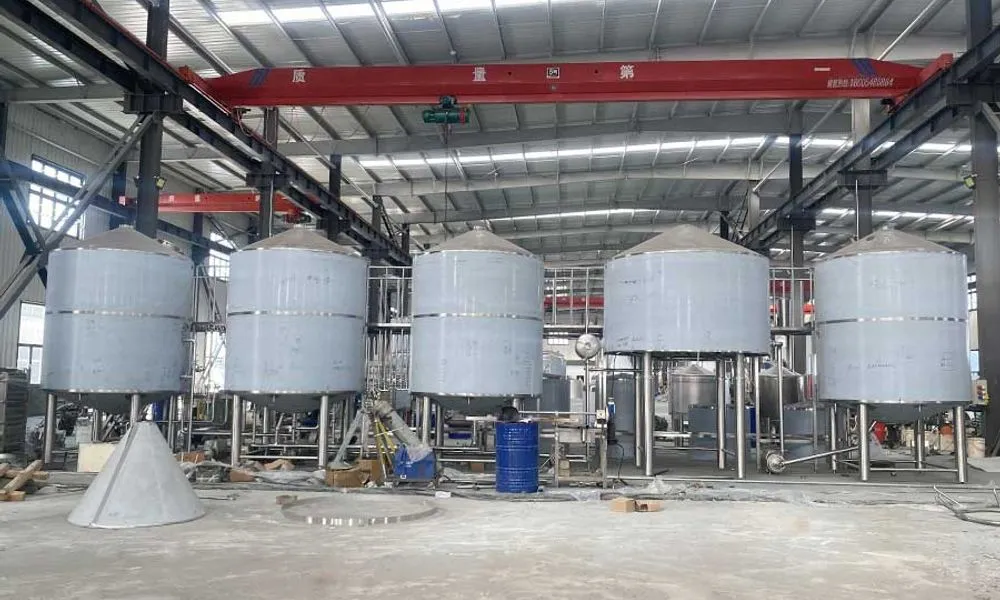

The brewhouse in this used 5000L brewery equipment configuration is a 4-vessel 50HL system with matching hot water capacity, malt mill and grain handling, plus pumps, heat exchanger and platform.
Effective 2800L • Total 3600L
Effective 2500L • Total 3300L
Effective 2800L • Total 3600L
Effective 2500L • Total 3300L
Effective 5000L

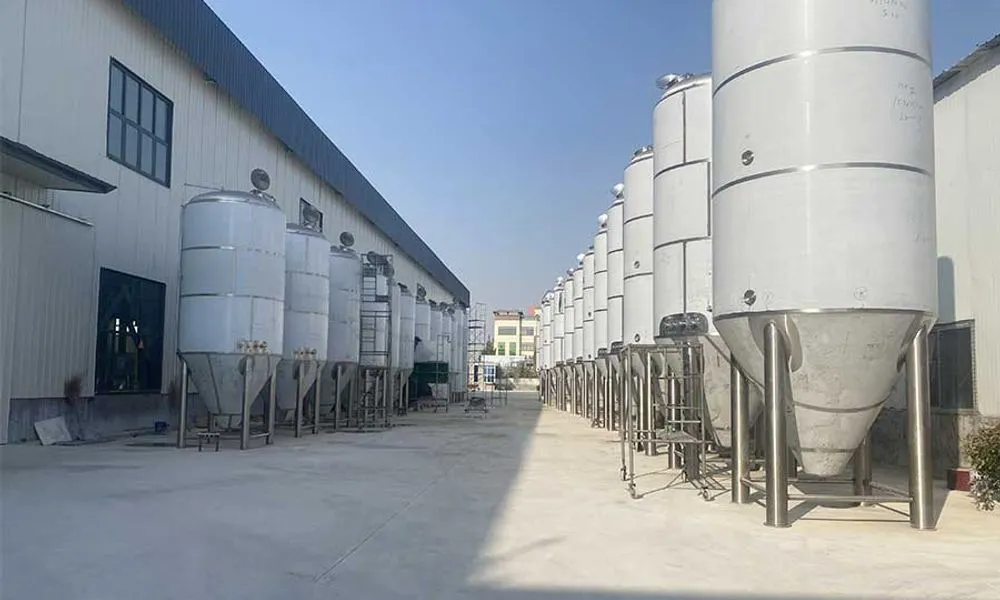

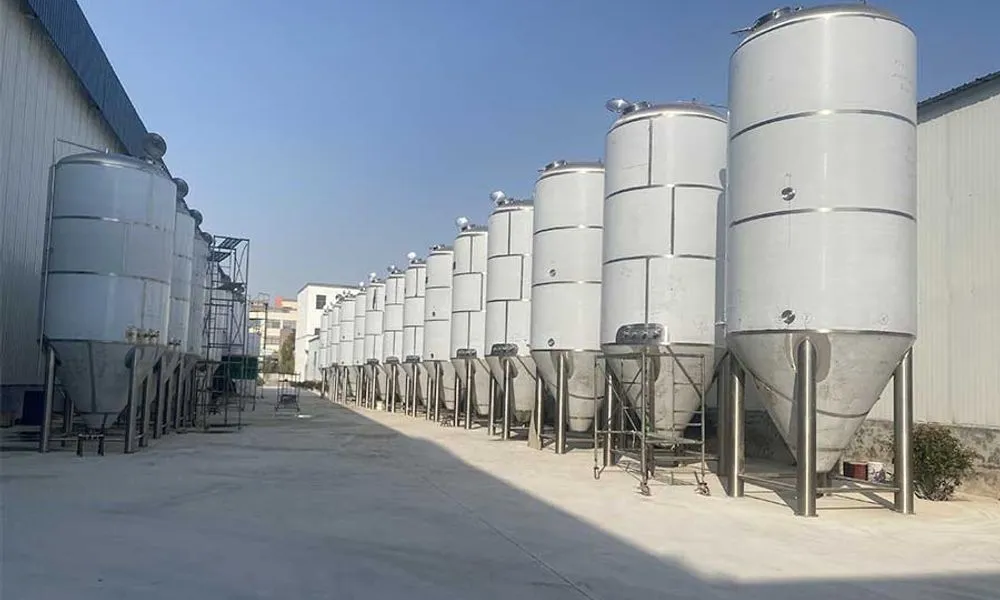

The cellar section in this used 5000L brewery system consists of nine 5000L conical fermenters and one 5000L bright beer tank, all fully jacketed and insulated for controlled fermentation and maturation. :contentReference[oaicite:3]{index=3}
Effective 5000L • Total ~6800L • Cylindroconical
Effective 5000L • Total ~6000L
The cold block in this used 5000L brewery equipment configuration includes an 8000L ice water tank, 5000L cold water tank and two 15P plate-type chillers, with pumps and controls sized for the fermenters and brewhouse.
Effective 8000L • Φ2100 × 3800 mm
Effective ~8000L • Φ2000 × 3500 mm
The original design uses PC-based manual/variable frequency control for mash, lauter, boiling, whirlpool, fermentation and cooling. In a used 5000L brewery equipment project, we can keep, refurbish or partially modernize these panels depending on your automation strategy.
A structured, documented workflow so your used 5000L brewery equipment is reliable for new production.
Evaluate brewhouse, tanks, cooling and control vs. your layout, utilities and production plan.
Deep internal cleaning, scale removal and stainless surface passivation on key vessels.
Replace critical valves, gaskets, gauges, hoses and selected electrical components.
Perform basic pressure, cooling and functional tests on brewhouse, FVs and cooling circuits.
Provide configuration summary, key test results and photos before export packing and loading.
Below is a consolidated view of the main vessels and systems in this used 5000L brewery equipment configuration. You can copy this table into Excel or your internal documents for engineering and commercial review.
| Section | Item | Key Technical Data |
|---|---|---|
| Grain Handling | Malt Mill | Roller mill, approx. 800 kg/h; 3.0 kW motor; 380V/50Hz; for malt crushing before mash. |
| Grain Handling | Screw Conveyor | SUS304; capacity 1000 kg/h; length ~6 m; with malt/water mixer; feeds mash tun. |

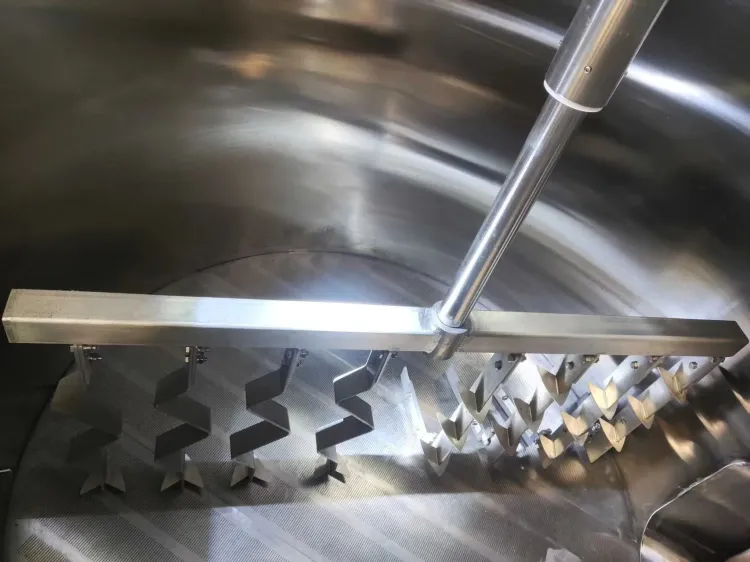

| Brewhouse | Lauter Tun | Effective 2800 L, total 3600 L; Φ2000 × 3200 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm PU; 160° cone bottom; milled screen (0.73 mm); automatic rake (3.0 kW); wash ring; wort collection ring and backwash valves; PT100 sensor. |
| Brewhouse | Mash Tun | Effective 2500 L, total 3300 L; Φ2000 × 3200 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm Rockwool; side & bottom steam jackets (~4.8 m²); 2.2 kW agitator; external vent Φ219 mm; PT100; integrated mash water mixer. |
| Brewhouse | Boiling Kettle | Effective 2800 L, total 3600 L; Φ2000 × 3200 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm Rockwool; side/bottom jackets (~4.8 m²); additional internal coil; vent Φ159 mm; PT100 probe. |
| Brewhouse | Whirlpool | Effective 2500 L, total 3300 L; Φ2200 × 3200 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm Rockwool; tangential inlet; PT100 temperature measurement. |
| Brewhouse | Hot Water Tank | Effective 5000 L; Φ2000 × 3500 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm Rockwool; internal steam coil; breathing vent; Φ400 manway; PT100. |
| Brewhouse | Plate Heat Exchanger | SUS304; 25 m²; dual-stage cooling (city water + ice water); design pressure 2.0 MPa; working temp 120 °C; stable wort cooling. |
| Brewhouse | Process Pumps | 5 × stainless pumps (5 m³/h & 10 m³/h); 1.5 kW motors; 380V/50Hz; inlet Φ51 mm, outlet Φ38 mm tri-clamp; VFD control on two pumps. |
| Fermentation | 5000L Fermentation Tanks | 9 × tanks; effective 5000 L, total 6800 L; Φ1900 × 4500 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm PU; dimple jackets on cylinder & cone (8.8 m²); design pressure 0.2 MPa; working 0.09 MPa; pressure manway Φ530 × 430 mm; PT100. |
| Fermentation | 5000L Bright Beer Tank | 1 × tank; effective 5000 L, total 6000 L; Φ1900 × 4000 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm PU; dimple jackets; 140° cone; pressure manway; PT100. |
| Cooling | Ice Water Tank | Effective 8000 L; Φ2100 × 3800 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm PU; internal coil; top manway Φ400 mm; PT100. |
| Cooling | Cold Water Tank | Effective ~8000 L; Φ2000 × 3500 mm; SUS304 inner 3 mm; outer 2 mm; 100 mm PU; internal cooling coil; top manway Φ400 mm; PT100. |
| Cooling | Chiller Units | 2 × 15P plate-type chillers; ~30,000 kcal; 380V/50Hz; Emerson scroll compressors; R22 refrigerant. |
| CIP | CIP Tanks & Pumps | 2 × 500 L acid/caustic tanks; 1 × 1000 L recovery tank; SUS304; 2 × 5 m³/h pumps, 1.5 kW, 380V; tri-clamp connections. |
| Control | Brewhouse & Cellar Panels | 2 × PC-based stainless control cabinets; manual and VFD control for mash, lauter, boil, whirlpool; temperature display for brewing and fermentation; control for ice water tank, 2 chillers and 3 pumps; additional steam and socket controls. |
Share your site layout, utilities, target production and packaging concept. We will prepare a detailed proposal for this used 5000L brewery equipment – including configuration, refurbishment scope, lead time, pricing and overseas shipping – so your team can make a confident B2B investment decision.
