500L Kombucha Equipment

The 500L kombucha equipment is ideal for small-scale kombucha production and pilot brewing. It is widely used by craft beverage startups, kombucha brands, brewpubs, restaurants, and R&D laboratories. The system supports fermentation, flavor development, and small batch production, making it a cost-effective solution for recipe testing, new product launches, and market trials.

The 500L kombucha equipment is ideal for medium to large-scale kombucha producers, especially those looking to increase production capacity or optimize their production processes. This equipment allows for the efficient production of large batches of kombucha to meet market demand and can be adjusted to suit different production needs. In addition to kombucha, the 500L system is also suitable for the production of other fermented beverages, making it a great option for beverage processing plants or craft beverage brands looking to diversify their product lines. Its capacity not only enables large-scale production but also supports the development of new flavors or formulations, offering flexibility and a competitive edge in the market. In summary, the used 500L kombucha equipment provides an efficient and cost-effective solution for medium to large enterprises.

Key Advantages of Our 500L Kombucha Equipment

Modernized used 500L kombucha equipment built on an industrial MICET design, adapted to your real project.

Geoptimaliseerde kombucha-apparatuur

A 500L kombucha equipment, including a 500L fermentation tank, temperature control system, and sanitary piping, is designed for stable and consistent small-batch kombucha production.

Test

We start with the defined MICET 500L kombucha design, then inspect, clean, test, and selectively each module in a 500L kombucha equipment package.

Upgrade-opties

Retain the core components of your 500L kombucha equipment while upgrading selected valves, pumps, or control systems to new components that meet your production requirements and budget.

Parameter Details of a 500L Kombucha Machine

The 500L kombucha equipment usually includes a 500L stainless steel fermentation tank, temperature control system, and sanitary valves and piping. It is designed for kombucha fermentation, small-batch production, and recipe testing, providing stable and hygienic brewing conditions.

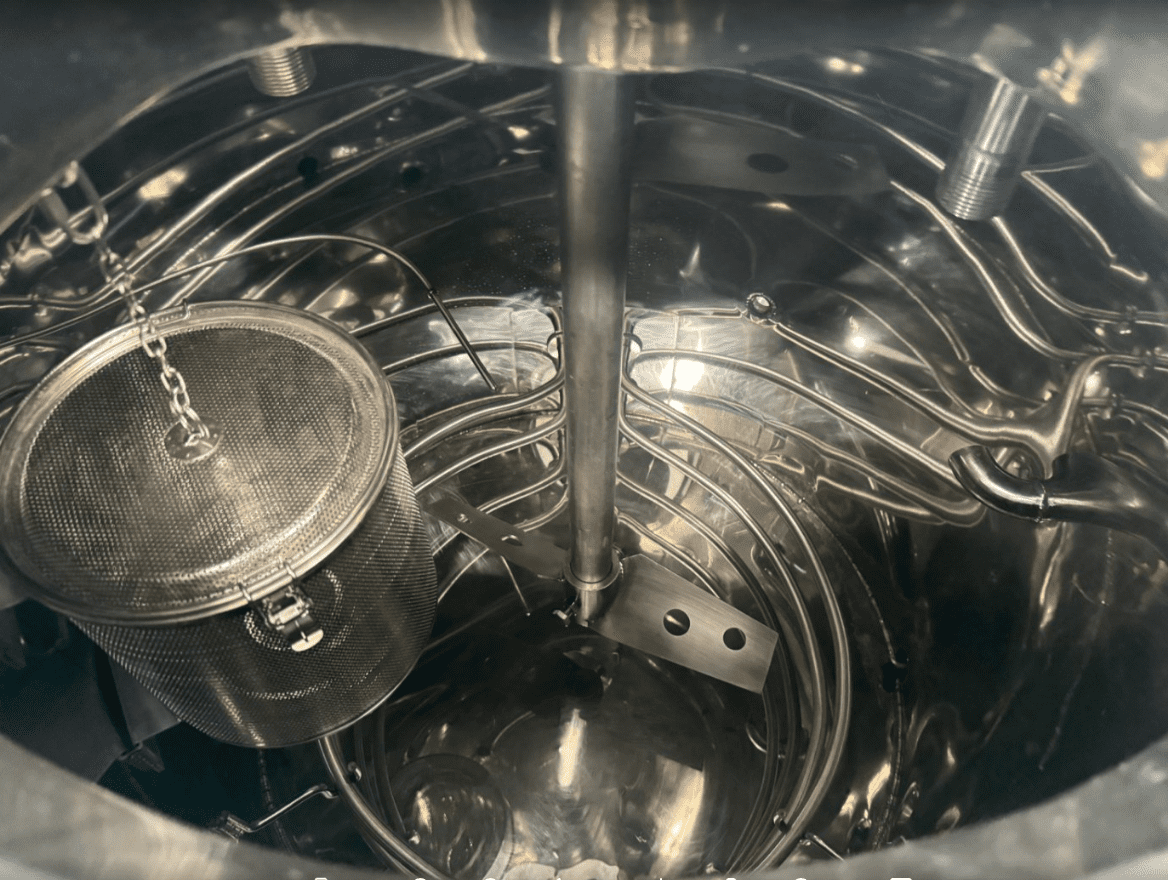

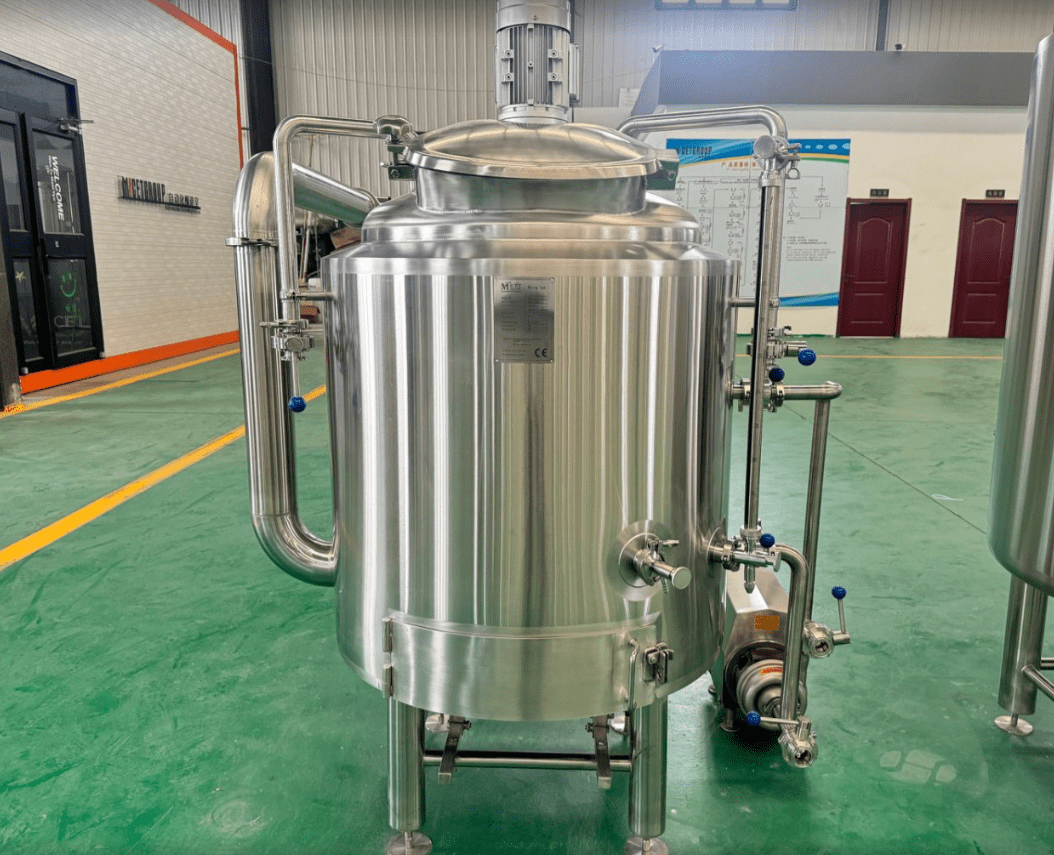

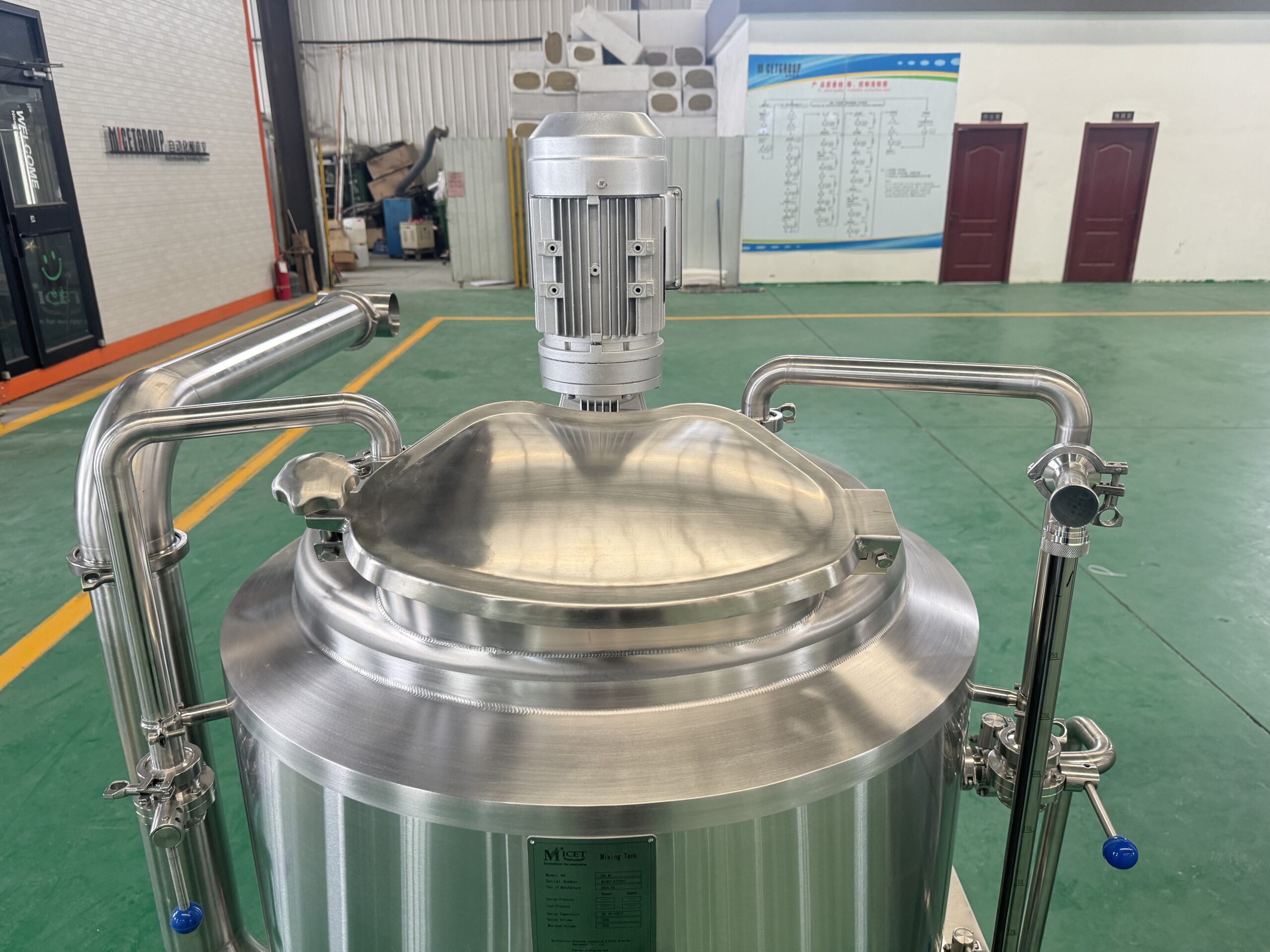

Tea Brewing Tank

  • Total volume: 260L
  • Effective working volume: 200L
  • Inner shell material: SUS304, thickness 3.0 mm
  • Outer cladding: SUS304, thickness 2.0 mm
  • Dished head: 3.0 mm
  • Insulation: Rock wool, thickness 80 mm
  • Electric heating element: 8 kW
  • Motor rated power: 0.55 kW (CE certified)
  • 360° CIP spray ball
  • Temperature control: PT100 sensor
  • 100% full TIG welded joints
  • Internal surface finish: mirror polishing to 0.4 μm, no dead corners
  • Four heavy-duty SUS304 legs with adjustable leveling feet
  • Equipped with tea basket (capacity: 1–1.5 kg tea leaves)

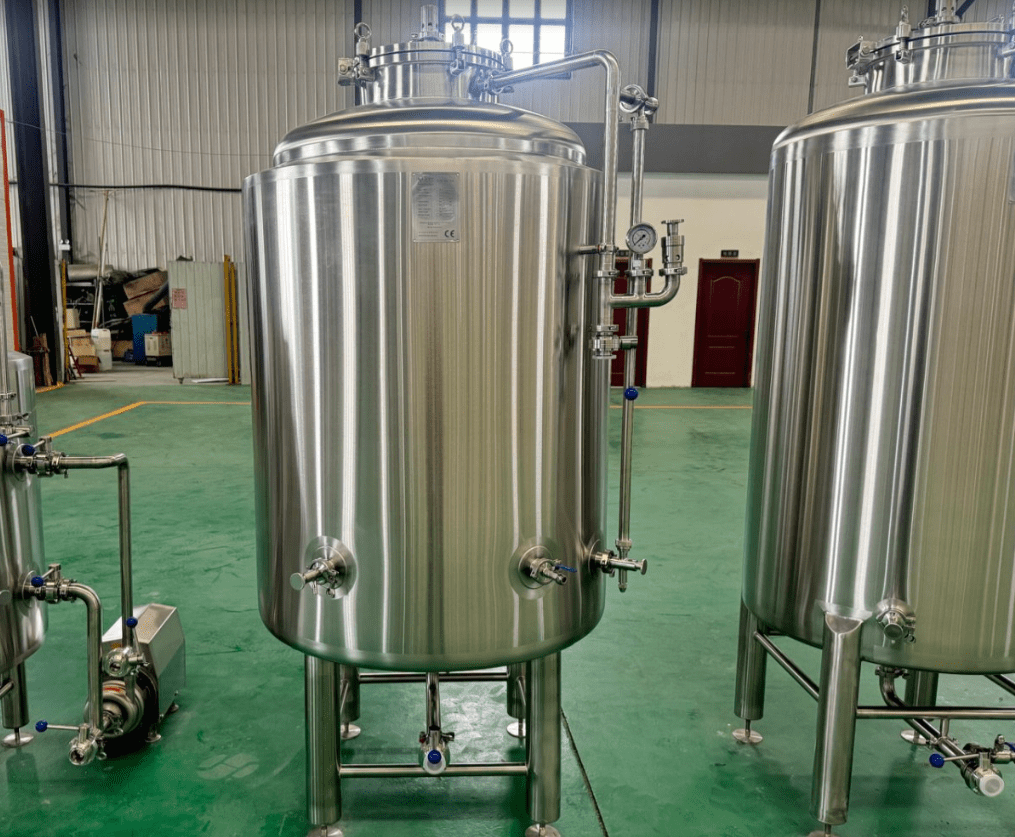

Bright Tank

  • Total volume: 600L
  • Effective volume: 500L
  • Inner shell material: SUS304, thickness 3.0 mm
  • Outer cladding: SUS304, thickness 2.0 mm
  • Dished head: 3.0 mm
  • Insulation: Polyurethane, 80 mm
  • 140° conical bottom
  • Cooling medium: glycol water or alcohol water
  • Dimpled cooling jacket
  • Jacket leakage test conducted with water and air pressure according to ISO standards
  • Jacket test pressure: 5 bar; working pressure: 3 bar
  • Tank test pressure: 4 bar; working pressure: 2 bar
  • Temperature control: PT100 sensor
  • 360° CIP spray ball
  • Top manhole: 350 mm

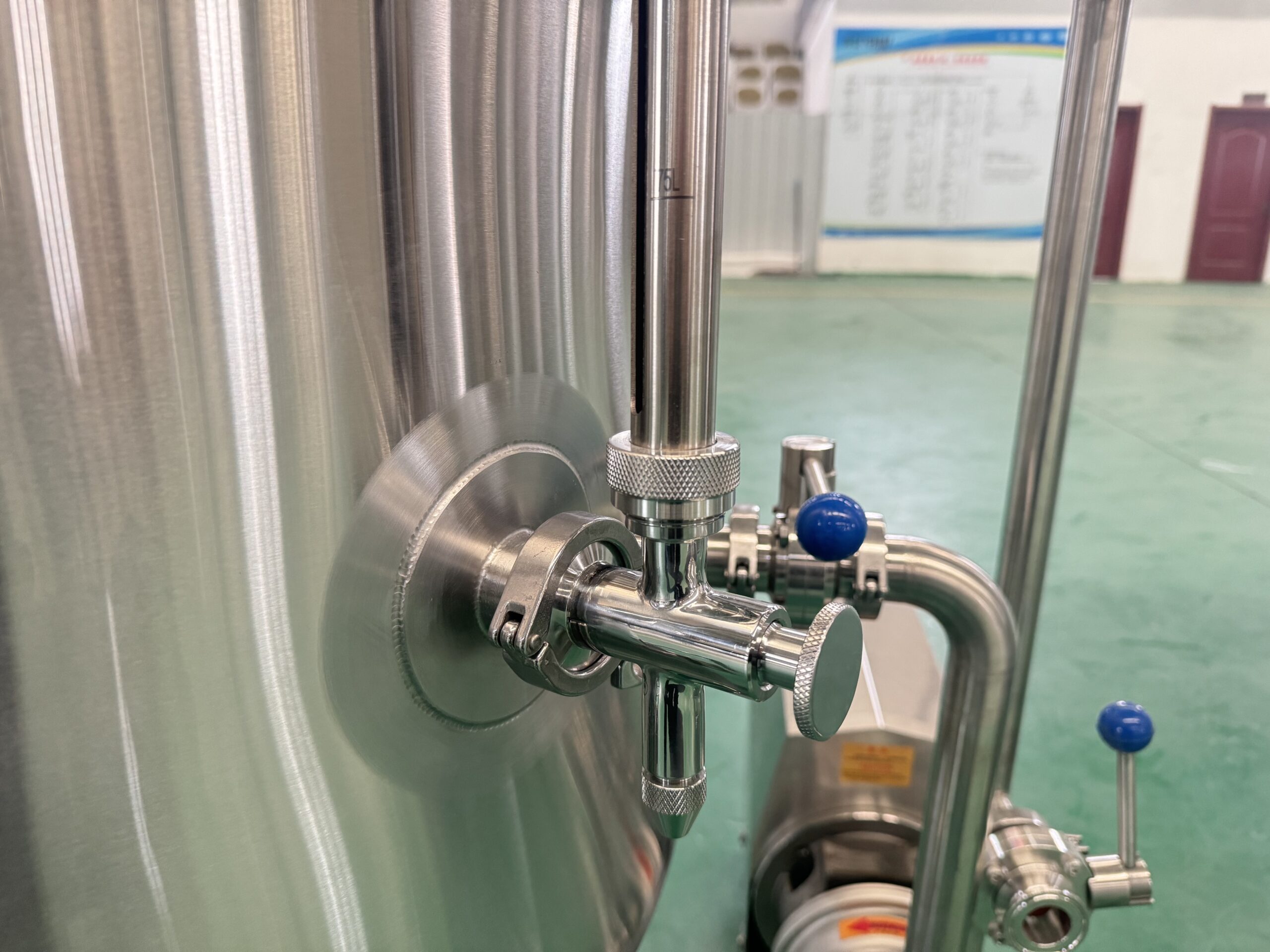

  • Sanitary sampling valve
  • Titanium rod (carbonation stone)

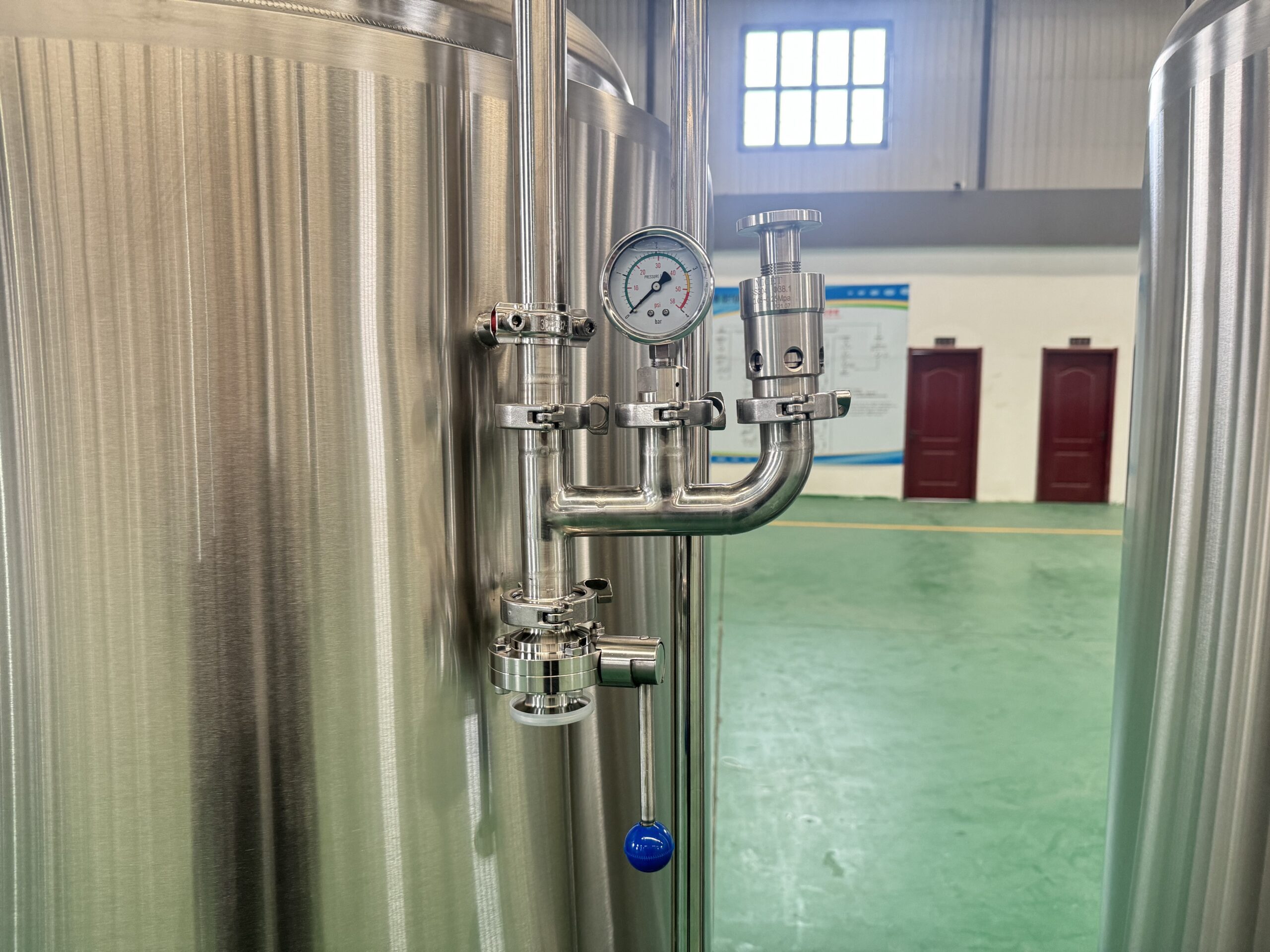

  • PVR valve & pressure gauge
  • Safety valve
  • 100% full TIG welded joints
  • Internal finish: mirror polishing to 0.4 μm, no dead corners
  • Four heavy-duty SUS304 legs with adjustable leveling feet

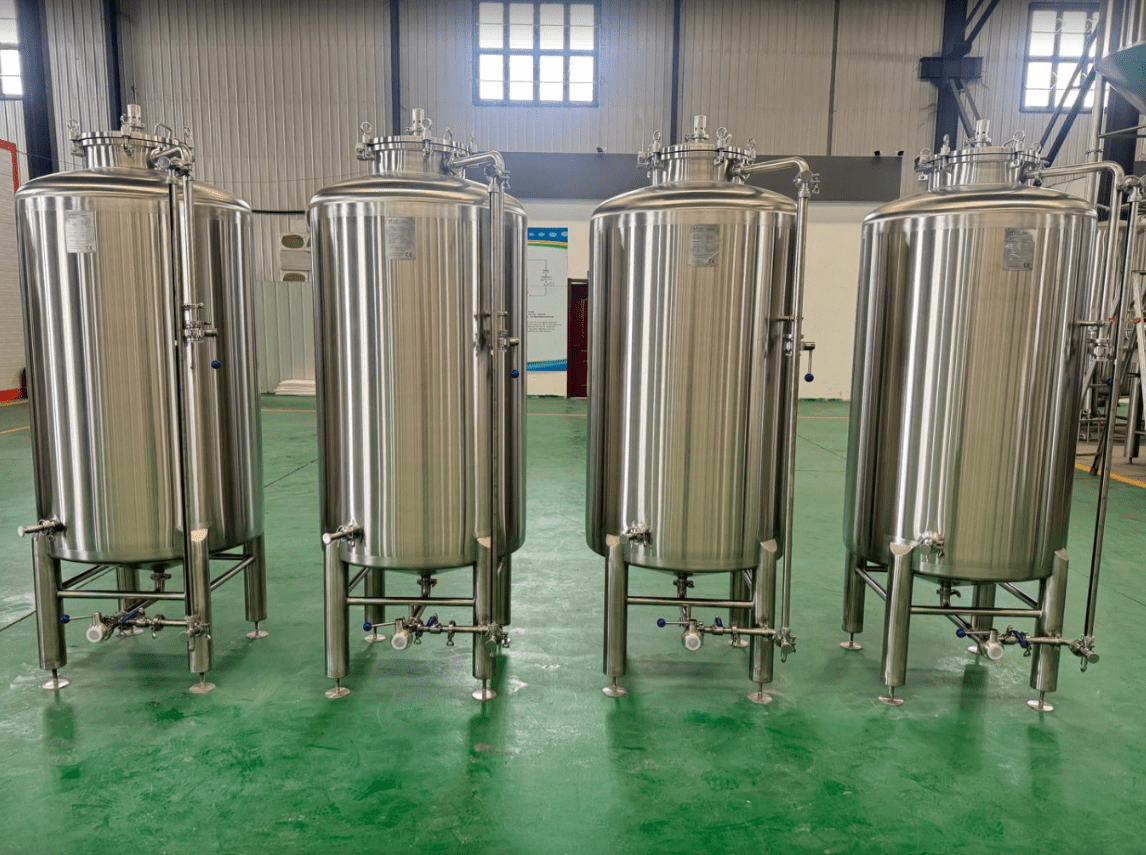

Fermentatiesysteem

  • Single-layer design, without jacket and insulation
  • Total volume: 600L
  • Effective volume: 500L
  • Material: SUS304 stainless steel, thickness 3.0 mm
  • Dished head thickness: 3.0 mm
  • 140° conical bottom
  • ISO standard leakage test using water pressure and pressurized gas
  • 360° rotating spray ball
  • Top manhole: 350 mm
  • Sampling valve
  • 100% full TIG welded joints
  • Internal finish: mirror polishing to 0.4 μm, no dead corners
  • Four heavy-duty SUS304 legs with adjustable leveling feet
  • Equipped with protective guardrail

Control Cabinet

  • Material: Stainless steel
  • PID controller: Autonics
  • CE certified, Schneider components
  • Control panel supplied with wiring diagram
  • English operation manual provided
  • All motors equipped with fuses and overload protection devices

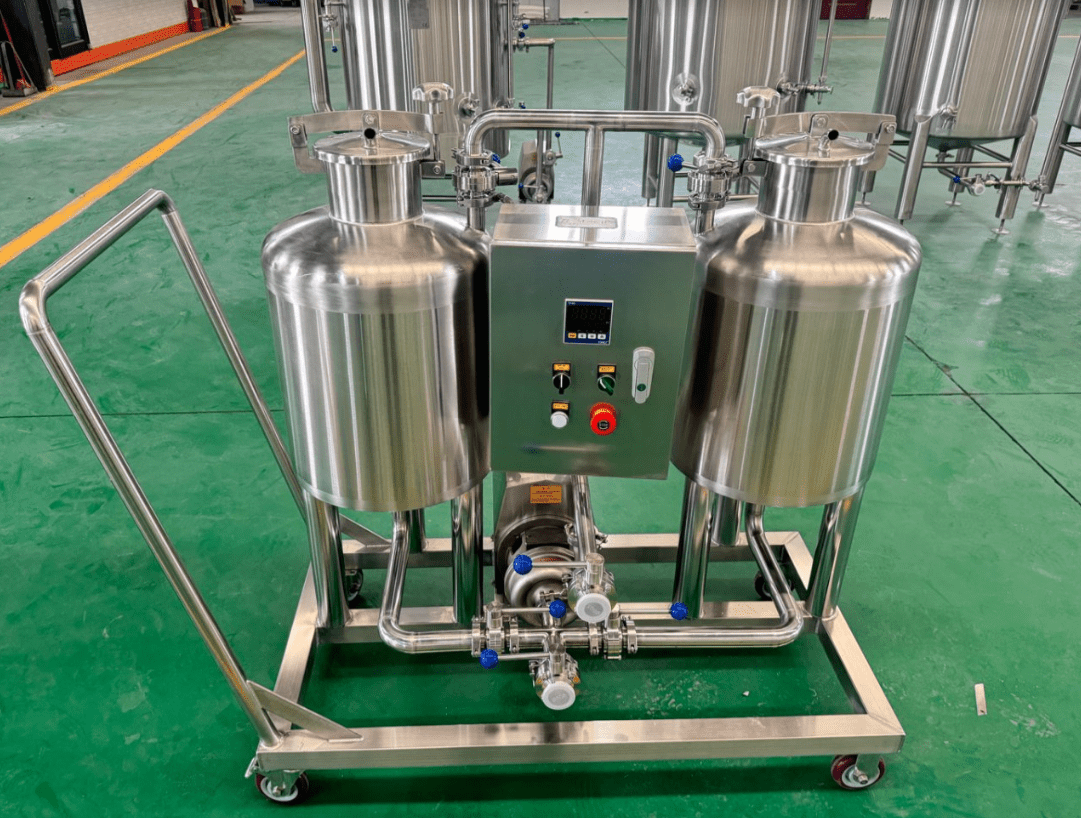

CIP Cleaning System

Sanitizing Tank – 1 Unit

  • Total volume: 60 Liters
  • Effective volume: 50 Liters
  • Thickness: 2.5 mm

Alkali Tank – 1 Unit

  • Total volume: 60 Liters
  • Effective volume: 50 Liters
  • Thickness: 2.5 mm
  • Electric heating

CIP Pump – 1 Unit

  • Material: SUS304 stainless steel
  • Flow rate: 5 m³/h
  • CE certified, with frequency inverter control

Control Unit – 1 Set

  • Control panel size: 350 × 350 mm
  • Material: Stainless steel

500L Kombucha Equipment Detail

500l Kombucha Equipment

How We Manufacturer 500L Kombucha Equipment

To make this 500L Kombucha Equipment ready for a new project, we follow a structured quality control process.

Stap 1

Inspectie & Planning

Het kombucha-systeem zorgt ervoor dat tanks, kleppen en regelapparatuur veilig, schoon en geüpgraded zijn voor betrouwbare fermentatie in kleine batches.

Stap 2

Reinigen & Passivatie

Reiniging en desinfectie omvatten het grondig reinigen van de fermentatietanks, leidingen en componenten, waarbij hygiëne wordt gewaarborgd en besmetting wordt voorkomen.

Stap 3

Component

Versleten of verouderde kleppen, pompen en regelingonderdelen van de kombucha-apparatuur vervangen om een veilige, consistente en betrouwbare werking te garanderen.

Stap 4

Testen

De apparatuur wordt getest op goede werking, lekvrije verbindingen en stabiele fermentatieprestaties.

Stap 5

Documentatie & Verpakking

Zodra de apparatuur de inspectie en testen doorstaat, wordt deze gedocumenteerd en veilig verpakt om te beschermen tijdens transport.

Request a Proposal for a 500L Kombucha Machine

Please share your production plan, layout, and timeline. Based on this information, we will prepare a detailed quotation for a 500L kombucha system, including equipment configuration, refurbishment scope, pricing, delivery time, and shipping method, enabling you to make a confident B2B purchasing decision for a 500L kombucha equipment.

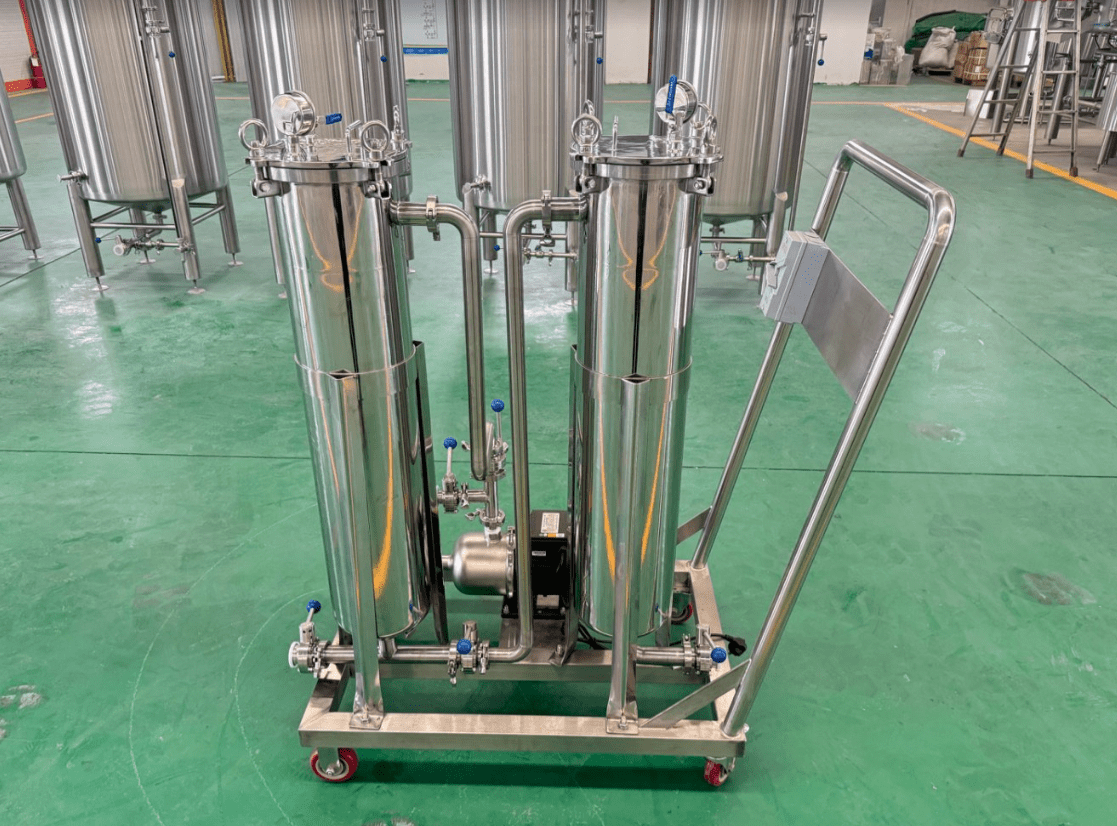

A complete 500L kombucha system typically includes a 500L fermentation tank, boiling kettle with heating and agitation, temperature control system, filtration unit, sanitary piping and valves, and basic control systems. If required, we can also provide technical support for layout design, installation, and commissioning.
