3000L Distillery Equipment

The 3000L distillation equipment is ideal for industrial spirit and neutral alcohol production plants.

The 3000L distillery equipment includes a distillation column for separating alcohol, a boiler for steam, fermentation tanks for alcohol fermentation, a condenser to cool and condense the vapor, a cooling system for temperature control, and an alcohol collection tank for storing the final product. This setup is ideal for industrial spirit and neutral alcohol production.

The 3000L distillation equipment is a complete system designed for large-scale industrial spirit and neutral alcohol production, offering stable operation and high cost efficiency. It typically includes a distillation column, boiler, fermentation tank, condenser, cooling system, cold water tank, and alcohol collection tank, enabling a continuous process from raw material fermentation to alcohol distillation and cooling recovery. With a 3000L capacity, it is suitable for medium to large-scale distilleries or alcohol plants, ensuring high output while maintaining alcohol purity and energy efficiency, making it an ideal choice for expansion or new projects.

Get a free quote
Used 3000L Distillery Equipment
Used 3000L Distillery Equipment
Used 3000L Distillery Equipment

Key Advantages of Our 3000L Distillery equipment

Modernized 3000L distillery equipment built on an industrial MICET design, adapted to your real project.

Optimized 30HL Distillery equipment

A 3000L distillation apparatus, including a dedicated 3000L still, copper distillation hood, and alcohol piping, is designed for a stable, repeatable distillation plant.

Test

We start with the defined MICET 3000L distillation design, then inspect, clean, test, and commission each module in our brand-new 3000L distillation equipment package.

Upgrade Options

Retain the core components of your existing 3000L distillation equipment while upgrading selected valves, pumps, or controls to new components that meet your standards and budget.

3000L Distillery System –Still Pot & Swan neck-A

The 3000L distillation equipment includes a distillation column, boiler, fermentation tank, condenser, cooling system, cold water tank, and alcohol collection tank, making it ideal for large-scale industrial spirit and neutral alcohol production.

Still Pot

  • Total volume: 4000 Litres
  • Working volume: 3000 Litres
  • Inner pot: SUS304; 6mm thick
  • Dished head: TP2 red copper; 6mm thick
  • Outer shell: SUS304 Fish wave plate; 2mm thick, jacketed and 100mm Insulated
  • Steam jacket:SUS304,6mm thick
  • Heating method: steam heating，steam supply≥300KG/H
  • Sccessories: φ450 glass man hole, pressure relief valve, thermometer, Pressure gauge,steam trap,CIP cleaning ball etc.

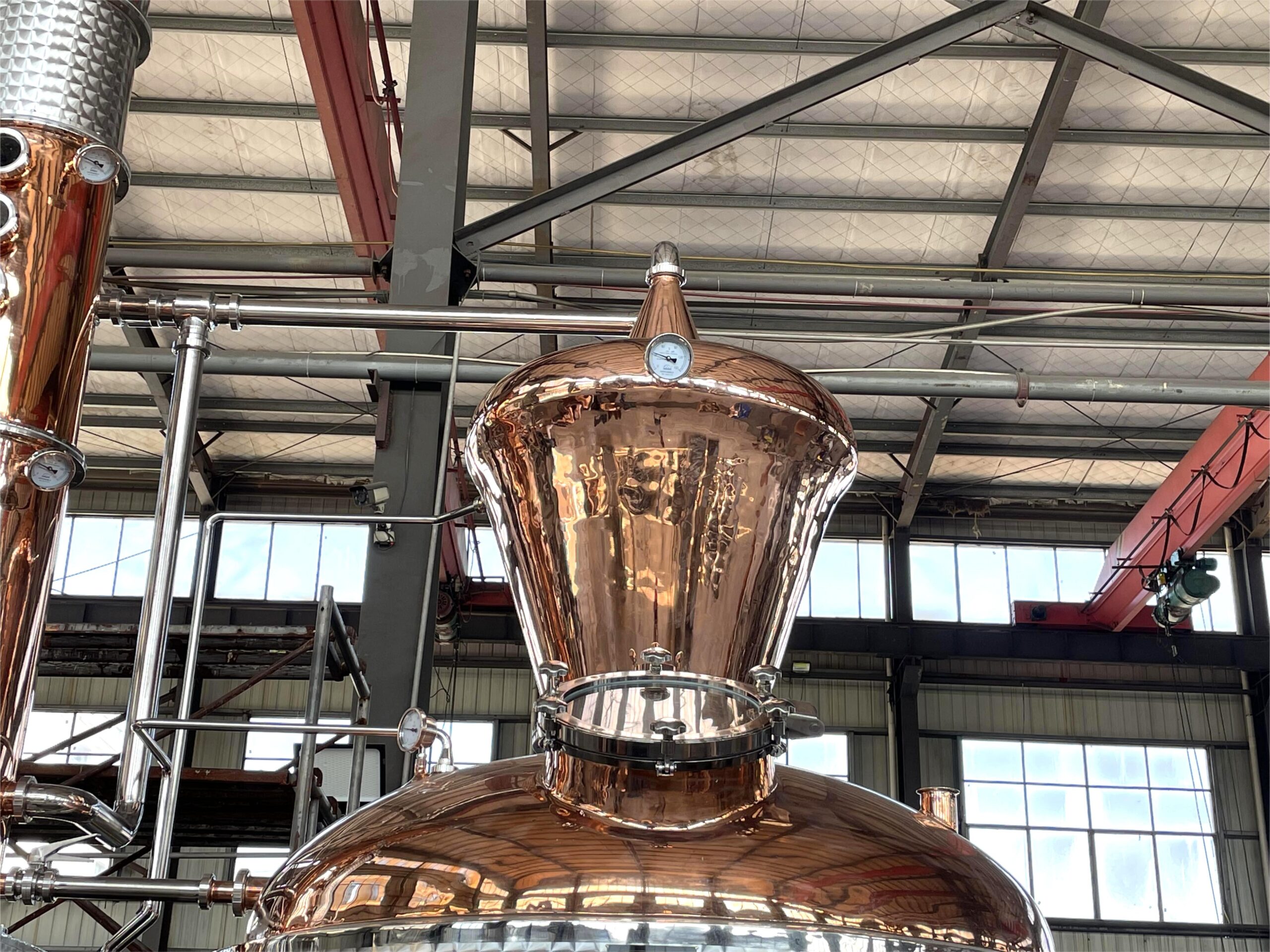

Swan neck-A

  • Material: TP2 red copper, 4mm thick
  • With DN100 sight glass,cleaning ball,
  • Size:DN800*1000mm

Lynn Arm

  • Material: TP2 red copper, 3mm thick
  • Size:DN200*1200mm
  • With thermometer

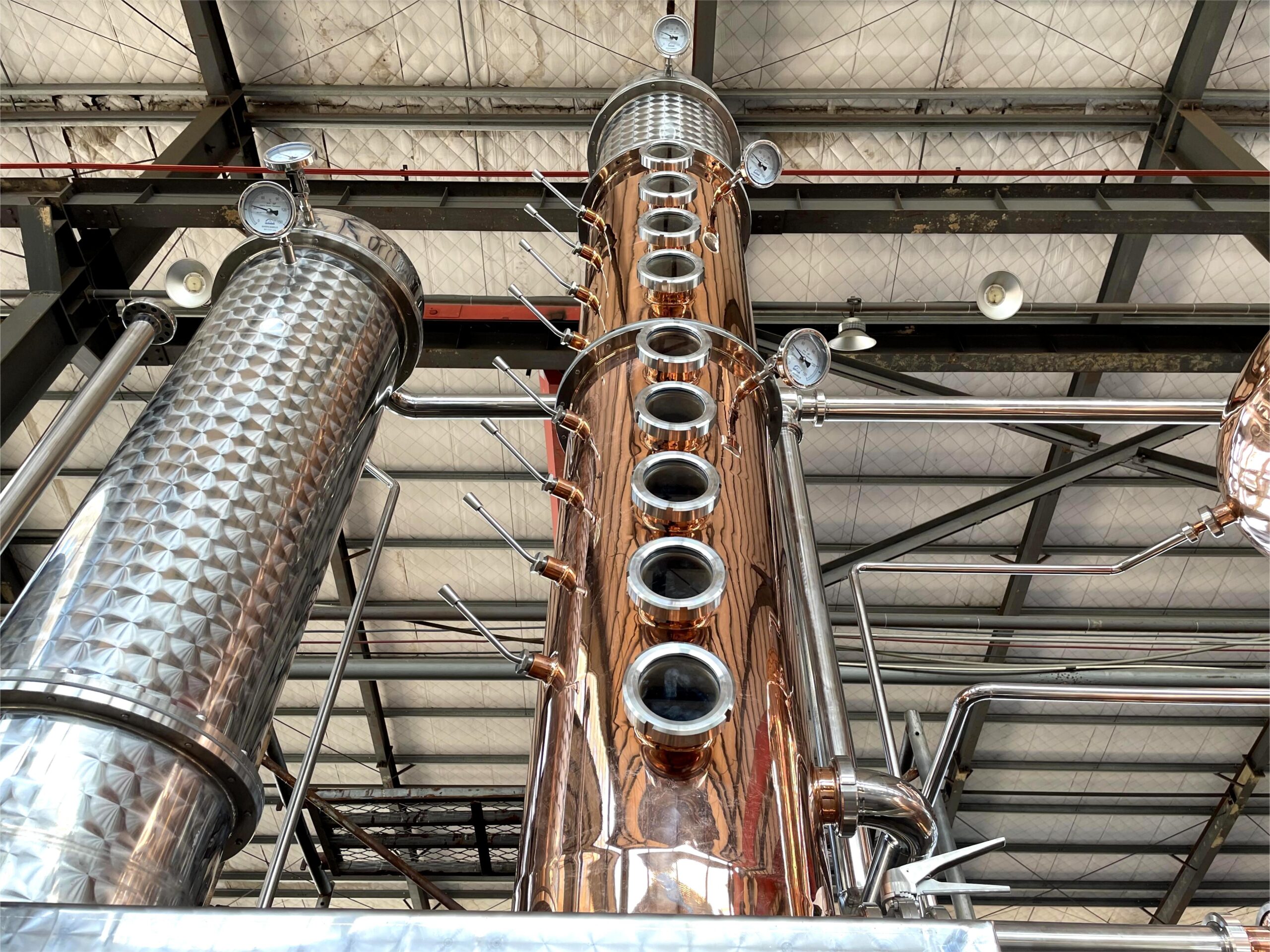

Column

  • Column:TP2 red copper,thickness:3mm
  • Size:DN400*1670mm
  • 6bubble plates with 7 sight glasses
  • Attached reflux device,  thermometer
  • Each layer has reflux valves, copper bubble caps ,CIP cleaning balls

Dephlegmator

  • Material:SUS304, thickness: 3mm
  • Size: DN400*450mm
  • With 1.5” Trl-clamp cooling water inlet and outlet, thermometer,CIP cleaning ball

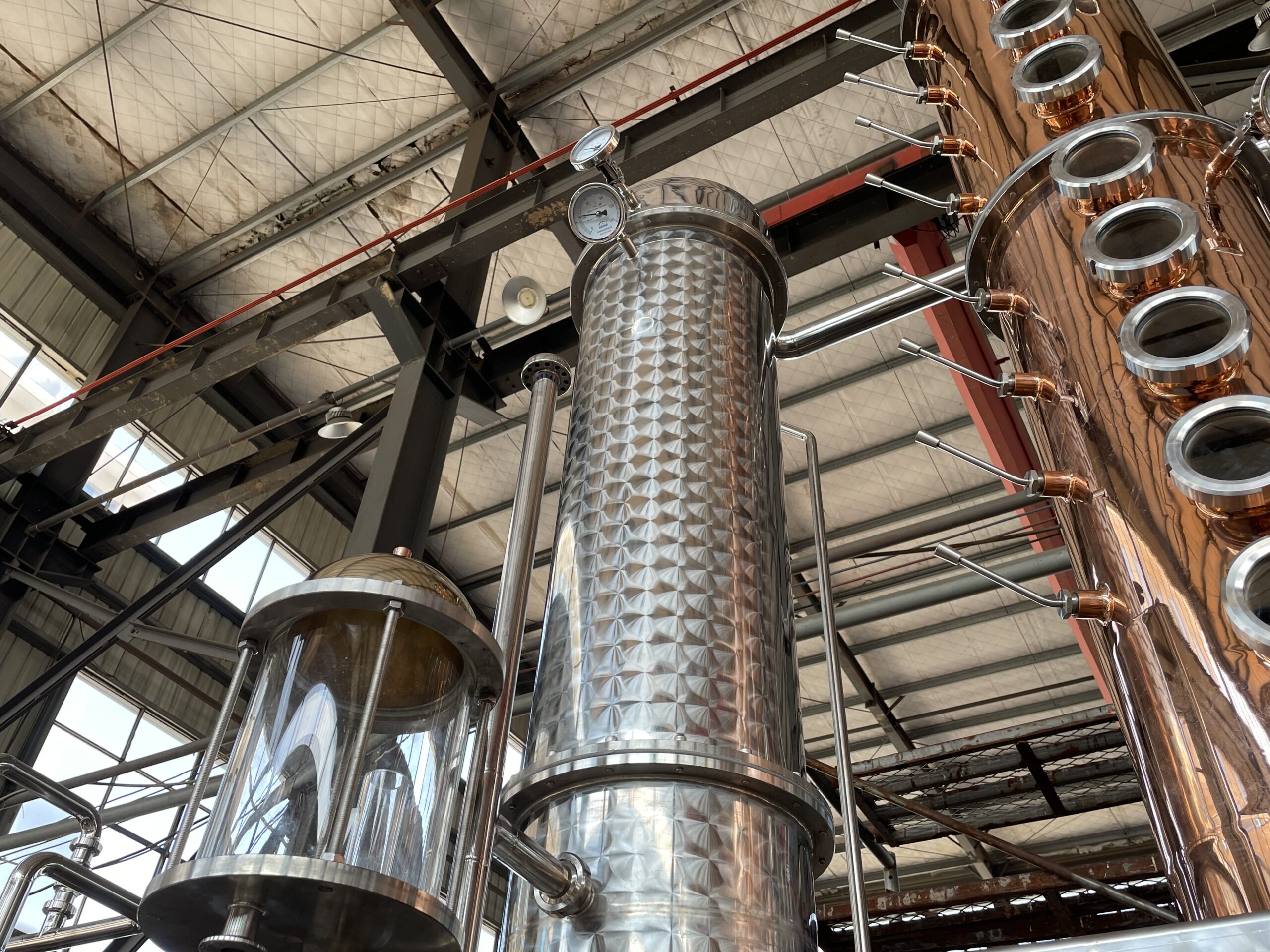

Condenser

  • Material:SUS304, thickness: 3mm
  • Size: DN350*1200mm
  • With 1.5’’ Tri-clamp cooling water inlet/ outlet, thermometer

Condenser

  • Material:SUS304, thickness: 3mm
  • Size: DN400*1200mm
  • With 2” Trl-clamp cooling water inlet and outlet, thermometer,CIP cleaning ball

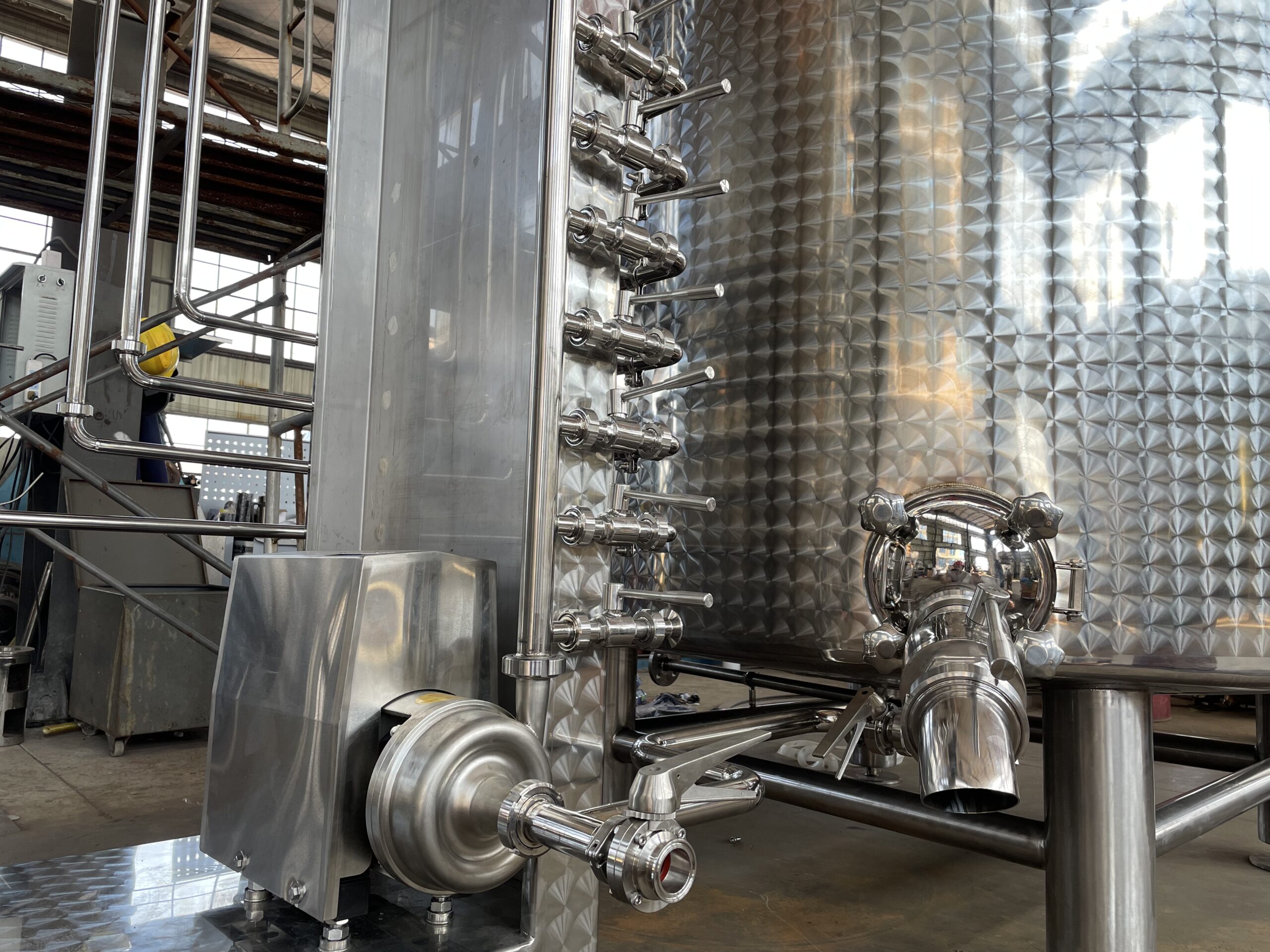

CIP pump

  • Material: Stainless steel SUS304
  • CIP cleaning device
  • With 1.5KW explosion proofing Pump
  • With all necessary vlaves and fittings to all of pot and each
  • The main function is to clean the still inner pot, Swan neck, Columns,gin basket,etc

Reflux pump

  • Material: Stainless steel SUS304(VFD)
  • Come with 0.75KW,3T/H,explosion proofing Pump

Reflux tank

  • Material: Stainless steel SUS304
  • Thickness: 3mm
  • Working volume: 430L
  • Configuration: manhole, glass level gauge,Level sensors

Hot water tank

  • Material: Stainless steel SUS304
  • Thickness: 3mm
  • Working volume: 430L
  • Configuration: manhole, glass level gauge,Drain,etc

Collection tank

  • Material: Stainless steel SUS304,thickness 3mm
  • Volume:1000L
  • With glass level gauge,Drain valves

Control box

  • Manual button type(Non explosion proof)
  • 304 stainless steel housing
  • Automatic control of reflux pump
  • Control CIP pump switch ,alcohol pump switch.

Gin Basket & Alcohol Collection Tank

This 3000L distillation system can be upgraded with a gin basket and an alcohol collection tank, allowing the distillery to produce a wider variety of spirits.

Gin Basket

  • Material:SUS304,3mm thick
  • Size: DN400*970mm
  • With copper basket,DN150 Sight glass,Attached reflux device

Alcohol Collection Tank

  • Material:SUS304 fish wave plate
  • Volume: 300L, thickness: 3mm

3000L Distillery Equipment Details

Used 3000L Distillery Equipment
Used 3000L Distillery Equipment
Used 3000L Distillery Equipment
Used 3000L Distillery Equipment
Used 3000L Distillery Equipment
Used 3000L Distillery Equipment

How We Manufcturer The 3000L Distillation Equipment

To make this brand-new 3000L distillation equipment ready for a new project, we follow a structured production and quality control process.

Step 1

Inspection & Planning

A systematic inspection of the distillation vessel, heating system, distillation head/column, condenser, piping, valves, and control components is conducted.

Step 2

Cleaning & Passivation

Cleaning and passivation involve thoroughly cleaning the distillation equipment and forming a protective layer through acid treatment to ensure safety, hygiene, and corrosion resistance.

Step 3

Component Refresh

Replacing worn or aged components on distillation equipment to ensure safe and reliable operation.

Step 4

Testing

The equipment is tested to ensure proper operation, no leaks, and safe production.

Step 5

Documentation & Packing

After the equipment passes the test, the distillation equipment is packaged in protective packaging to ensure safety and prevent damage during transportation.

Request a Proposal for 3000L distillery Equipment

Please share your production plan, layout, and timeline. Based on this information, we will prepare a detailed quotation for a 3000L distillation system, including equipment configuration, scope, pricing, delivery time, and shipping method, enabling you to make a confident B2B purchasing decision for a 3000L distillation equipment.

A complete 3000L distillation system typically includes a still pot, heating system, distillation head or column, condenser, alcohol collection tanks, basic control and cooling systems, as well as the necessary piping and valves. If required, we can also provide technical support for layout design, installation, and commissioning.
