Used 300L Brewery Equipment

Used 300L Brewery Equipment for Nano Breweries & Brewpubs

Un sistema compatto e collaudato used 300L brewery equipment package based on MICET’s turnkey 300L brewhouse design. This refurbished used 3HL brewhouse system combines mash/kettle, lauter tun, whirlpool, 300L conical fermenters, 800L glycol tank, CIP and 6-6 bottle filler – ideal as a second-hand 300L brewing system for serious nano breweries and brewpubs.

Questa configurazione è costruita a partire dallo standard di MICET 300L turnkey brewery equipment e adattato come un modello rinnovato used 300L brewing system. Instead of mixing random second-hand tanks, you get a coherent used 3HL brewery with matched brewhouse, fermenters, glycol, CIP and bottle filler, engineered to work together from malt mill to packaging.

Richiedi un preventivo gratuito
Used 300L Brewery Equipment
Used 300L Brewery Equipment
Used 300L Brewery Equipment
Used 300L Brewery Equipment

Key Advantages of Our Used 300L Brewery Equipment

Modernized used 300L microbrewery equipment built on an industrial MICET design, adapted to your real project.

Optimized 3HL Brewhouse Layout

Dedicated 300L mash/kettle, 300L lauter tun and 300L whirlpool in one compact used 300L brewhouse, designed for stable, repeatable nano brewery batches.

Used + Refurbished, Not Just “As-Is”

We start from a defined MICET 300L brewery design, then inspect, clean, test and selectively refurbish each module in the used 300L brewery equipment pacchetto.

Complete Line for Nano Breweries

Includes malt mill, 300L brewhouse, 300L fermenters, glycol cooling, CIP and 6-6 bottle filling – a complete used 3HL brewing system for brewpubs and small craft breweries.

Hybrid Used + New Upgrade Options

Mantenere il nucleo used 300L brewhouse while upgrading selected valves, pumps or controls with new components to match your standards and budget.

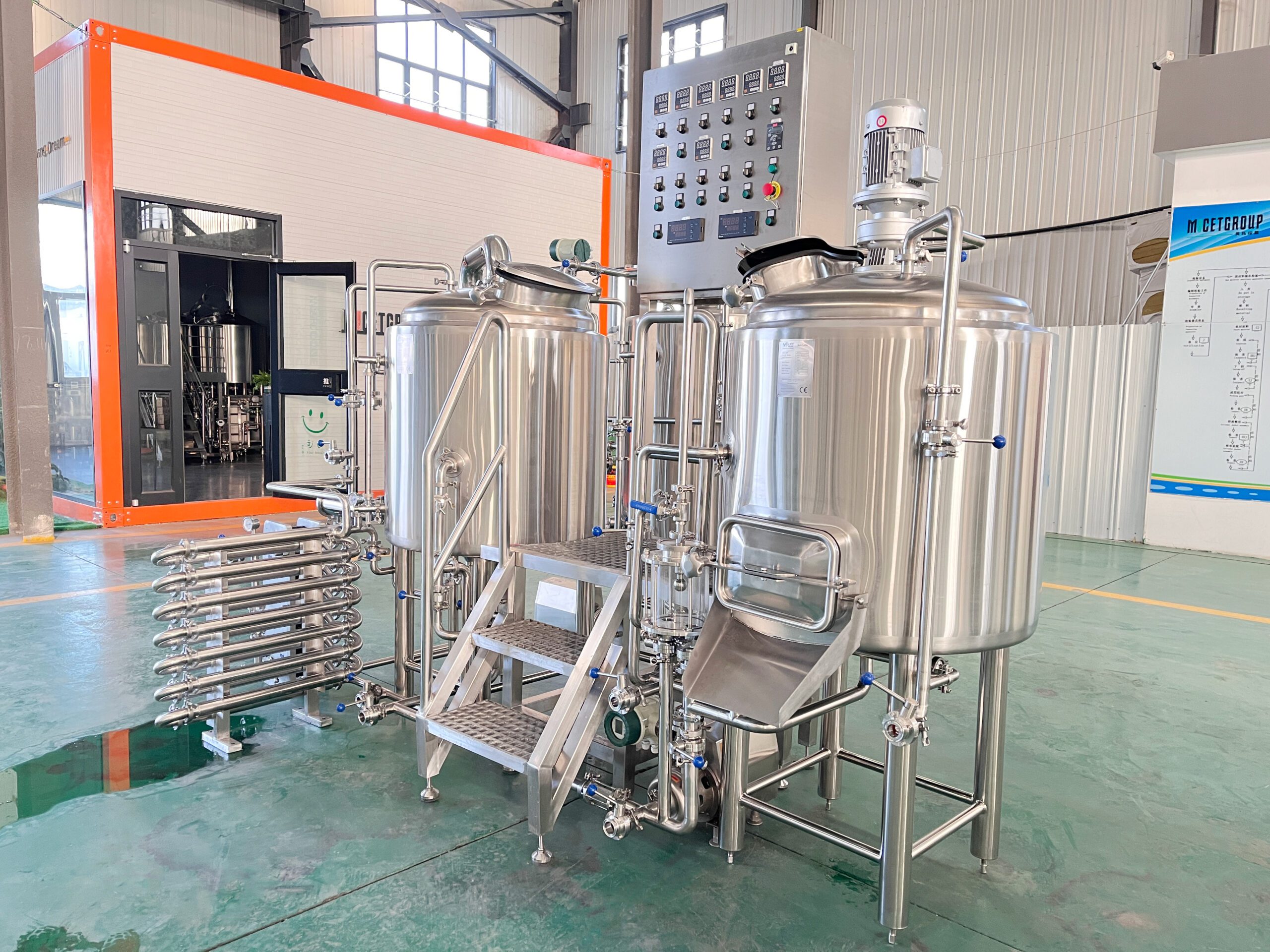

Used 300L Brewhouse System – Milling, Mashing, Lautering & Boiling

At the center of this used 300L brewing system is a three-vessel brewhouse with separate mash/kettle, lauter tun and whirlpool, plus a compact operator platform, plate heat exchanger and wort pump.

Sistema di macinazione del malto

  • Double-roller malt mill, crushing ability around 150 kg/h.
  • Model 3A; power ~0.75 kW; alloy rollers φ155×200 mm with adjustable gap.
  • Roller speed ~700 RPM, roller temperature ≤56 °C after operation, separate control switch.

Piattaforma dell'operatore

  • SUS304 platform integrating the whole brewhouse.
  • Equipment welded to the platform, movable with wheels and step access for operators.

300L Mash / Kettle Tun (Electric Heated)

Effective 300L • Total 390L (30% Headspace)

  • SUS304 inner 2.5 mm, outer 1.5 mm, cone head 3.0 mm, 80 mm Rockwool insulation.
  • Glass manhole ~350 mm; 0.55 kW agitator; rotating sparge arm and grain hydrator.
  • Flat base, 160° cone with wort collection tube and recirculation device.
  • Electric heating ~12 kW; grant tank; 360° CIP spray ball; PT100 temperature probe.
  • Full TIG welding and mirror-polished interior (~0.4 μm); four SUS304 legs.

300L Lauter Tun

Effective 300L • Total 390L (30% Headspace)

  • SUS304 inner 2.5 mm, outer 1.5 mm; cone head 3.0 mm; 80 mm insulation.
  • Glass manhole ~350 mm; 0.55 kW motor with scraping plate.
  • Laser-cut wedge-wire false bottom (0.7 mm gap), four-part removable sections.
  • Suction filtration via speed-controlled pump; grain discharge door 330×430 mm with dustpan.
  • Rotating CIP spray ball, thermowell and PT100 digital temperature control.

300L Whirlpool Tank

Effective 300L • Total 390L (30% Headspace)

  • SUS304 inner 2.5 mm, outer 1.5 mm; cone head 3.0 mm; 80 mm insulation.
  • 350 mm manhole; external sight tube; tangential whirlpool inlet.
  • Rotating CIP spray ball, thermowell and PT100 temperature probe.
  • Full TIG welding and mirror-polished interior (~0.4 μm); four SUS304 legs.

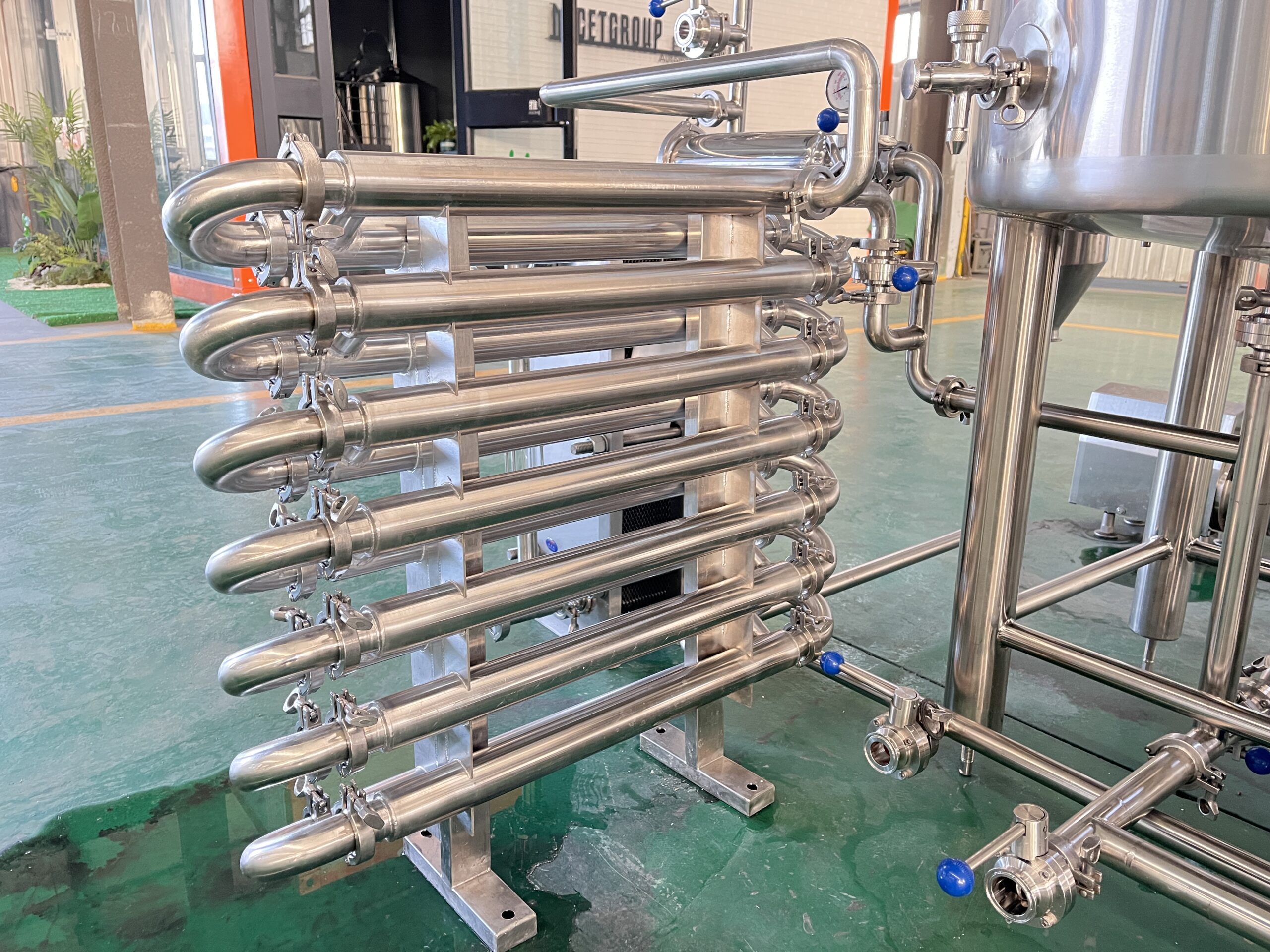

Scambiatore di calore a piastre

  • SUS304 construction, easily disassembled for cleaning.
  • Approx. 4 m² exchange area, two-stage cooling; wort, tap water and glycol connections.

Pompa del mosto

  • Flowrate ~3 m³/h, head ~24 m, 1.5 kW motor, CE listed.
  • Open impeller design, inverter-driven speed control, manifold for liquid flow control.
  • Tri-clamp connections: ~51 mm inlet, ~38 mm outlet.

Filtro per luppolo e serbatoio di bilanciamento del mosto

  • 304 stainless hops filter installed between whirlpool and PHE (~0.15 mm filtration).
  • Wort balance tank with glass and stainless housing, level and pressure display, turbidity sensor.

Brewhouse Pipework & Accessories

  • Sanitary SUS304 valves and TIG-welded pipework, tri-clamp connection system.
  • Yeast adding tank (~10 L), oxygenation device with sight glass, saccharometers, wort thermometer.
  • Grain rake, wort hoses (3 m & 5 m) and steam condenser with outdoor exhaust.

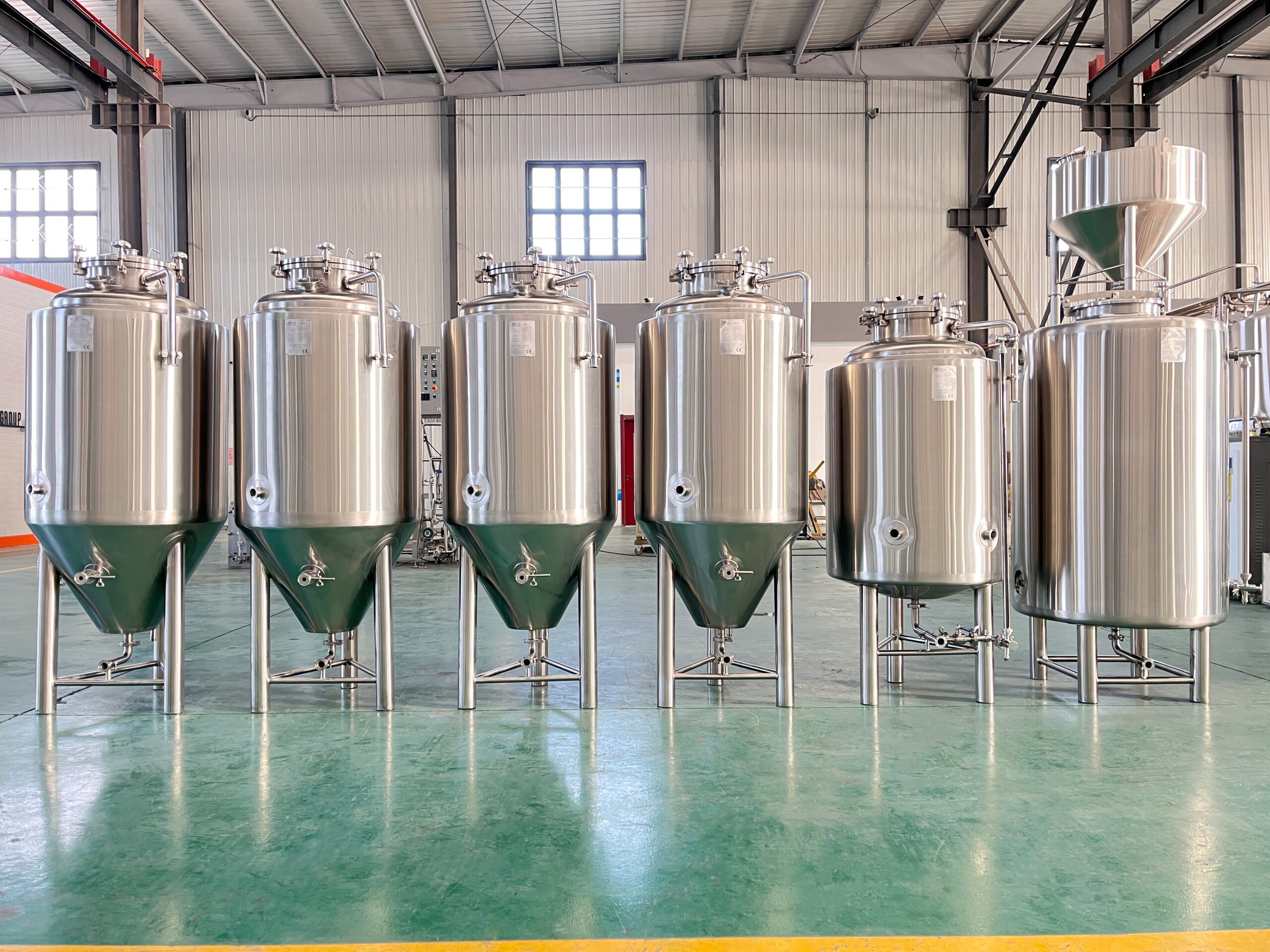

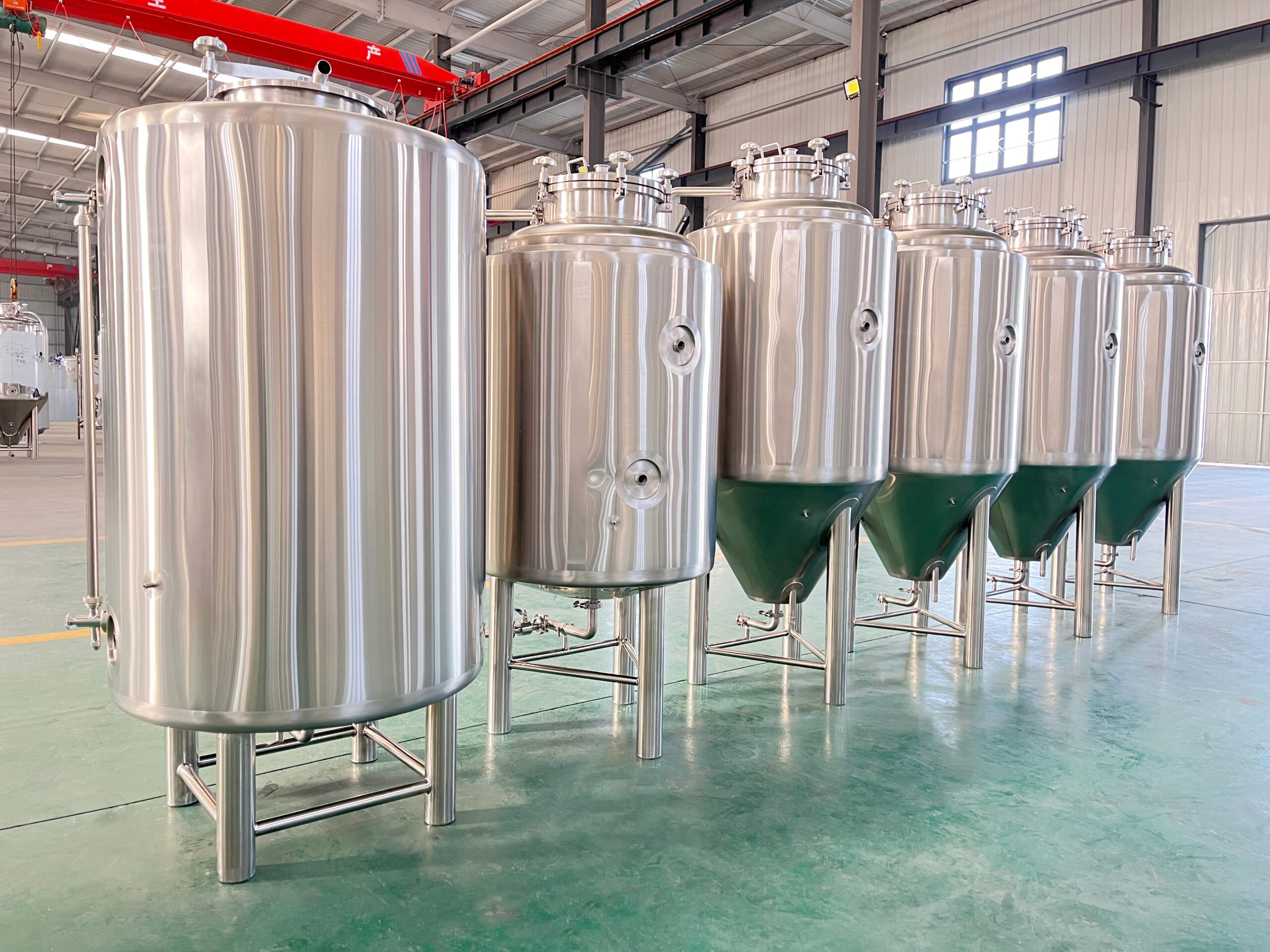

Used 300L Fermentation System – Jacketed Unitanks & Accessories

The cellar of this used 300L brewery equipment package includes two jacketed fermenters with ~300L effective capacity each, plus a full set of valves, gauges and fittings.

“500L” Fermentation Tank – 300L Working Volume (×2)

Effective 300L • Total 375L (25% Headspace)

  • SUS304 inner 2.5 mm, outer 1.5 mm; dish head 3.0 mm; PU insulation ~80 mm.
  • 60° discharge cone, stackable design with single dimpled cooling jacket on cone and cylinder.
  • Cooling media: glycol or alcohol water; design pressure ~0.4 MPa, working ~0.2 MPa.
  • PT100 temperature control, 360° CIP spray ball, side manway 330×430 mm.

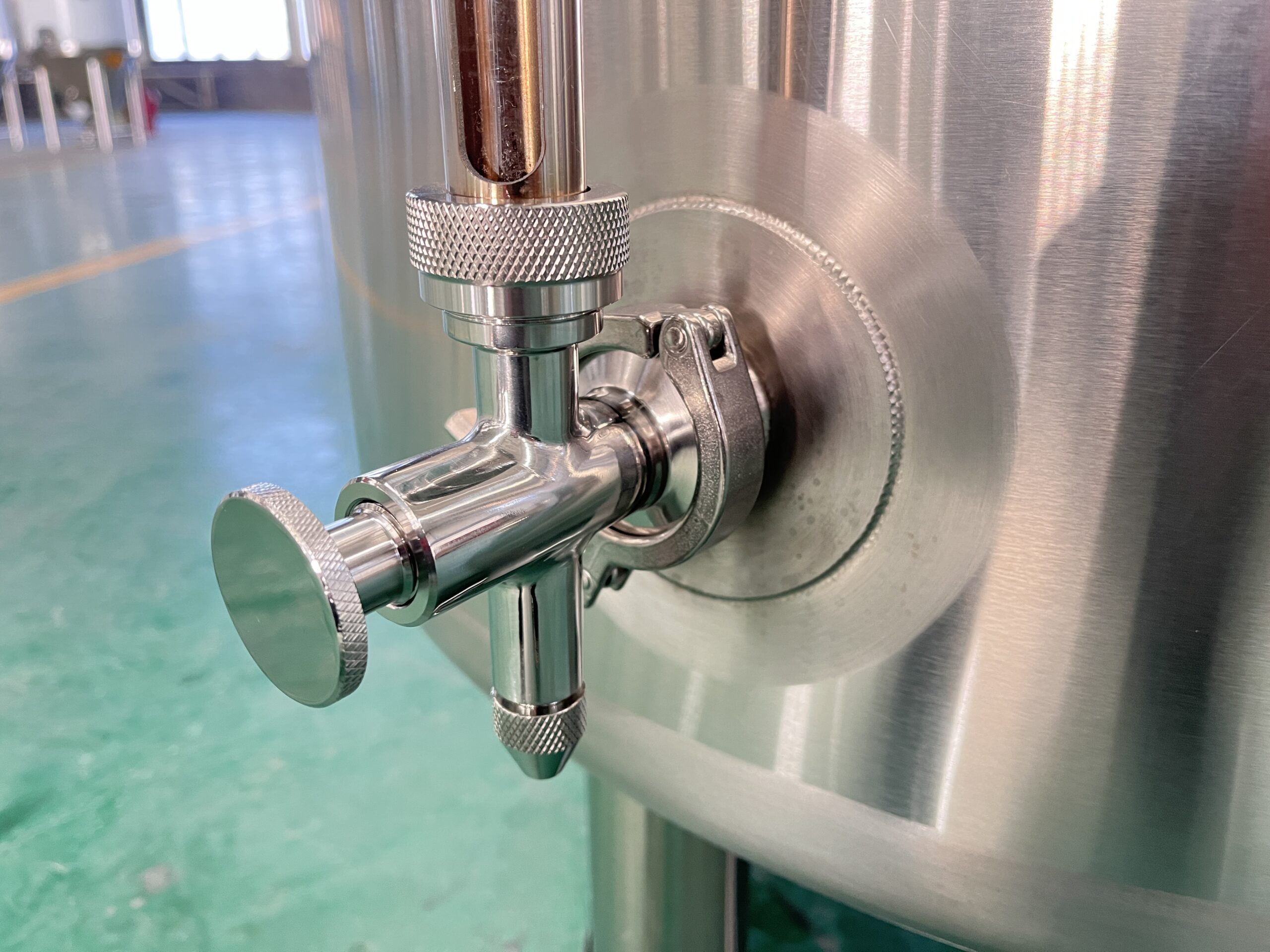

  • Sanitary sample valve, rotational racking arm, dry-hop port, four SUS304 legs with leveling pads.

Accessori per la fermentazione

  • Adjustable PRV valves (0.1–0.25 MPa) and pressure gauges (0–0.6 MPa).
  • Sample valves, 360° CIP spray balls and safety valves (~0.15 MPa).
  • Tri-clamp butterfly valves (~φ38 mm), solenoid valves (24 VDC, φ32 mm).
  • Carbonation stones (~φ38 mm), PT100 temperature probes and transmitters.
  • Food-grade beer tubes and pipework interconnecting CIP in/return and wort lines.

Glycol Cooling System & CIP Cleaning for the Used 300L Brewery

Un raffreddamento stabile e una pulizia affidabile sono elementi fondamentali per qualsiasi used 3HL brewery. This package combines an 800L glycol tank and 3 HP chiller with a compact CIP skid.

800L Glycol Water Tank

Effective 800L • Total 880L

  • SUS304 inner 3.0 mm, outer 2.0 mm; PU insulation ~80 mm.
  • Dimpled cooling jackets with glycol in/out; round manway ~400 mm.
  • External liquid level sight tube and full TIG welded construction.

Refrigeratore di glicole e pompa

  • Chiller ~3 HP, power about 3.2 kW, capacity ~13,115 kcal/h, R407C refrigerant.
  • Brand SENS, CE listed; glycol pump ~3 m³/h, 0.75 kW, CE certified.
  • PPR cooling piping and insulation installed according to brewery layout.

Sistema di pulizia CIP

  • Disinfection and alkalinity tanks: gross ~65 L, working ~50 L, SUS304 (2.5 mm), flat-bottom design.
  • Alkalinity tank with ~3 kW electric heater; CIP pump ~3 m³/h, SUS304, CE listed.
  • Stainless control cabinet (~350×350 mm) and sanitary 304 piping & valves.

Sistema di controllo PID e riempimento semi-automatico delle bottiglie

Il sistema di controllo del used 300L brewery equipment si basa su un concetto PID semiautomatico con pannello di controllo in acciaio inox e componenti industriali.

Sistema di controllo PID

  • Armadi a parete stampati a spruzzo per il controllo di mungitura, fermentazione e raffreddamento.
  • Yudian PID controllers, Schneider CE-approved components, English wiring diagrams.
  • Motors protected with fuses and overload relays; English operation manuals included.

6-6 Macchine per il riempimento e la tappatura delle bottiglie

  • Controllo semiautomatico con touchscreen PID.
  • 6 teste di riempimento + 6 teste di tappatura, circa 500 bottiglie all'ora.
  • Isobaric filling with CO₂ purge, pressure stabilization and automatic sequence.
  • Single-phase power (~30 W, voltage and frequency customized).

How We Refurbish the Used 300L Brewery Equipment

Per realizzare questo used 300L brewery equipment ready for a new project, we follow a structured refurbishment and quality control process.

Passo 1

Ispezione & Pianificazione

Review brewhouse, cellar, glycol, CIP and filler versus your capacity, layout and utilities.

Passo 2

Pulizia & Passivazione

Deep clean internal surfaces, remove residues and re-passivate stainless steel as needed.

Passo 3

Aggiornamento Componenti

Replace critical wear parts such as gaskets, PRVs, gauges, valves and selected electrical items.

Passo 4

Test

Pressure test tanks and jackets, and function test pumps, chiller and control circuits.

Passo 5

Documentazione & Imballaggio

Provide basic test records and photos, then pack and prepare the used 300L brewery for export.

Used 300L Brewery Equipment – Technical Specification Table

Parametri tecnici chiave per il used 300L brewery equipment. You can copy this table into Excel for internal B2B evaluation and project planning.

SezioneArticoloDati tecnici fondamentali
FresaturaMulino a maltoCrushing ability ~150 kg/h; Model 3A; power ~0.75 kW; carbon steel body; alloy rollers φ155×200 mm; adjustable gap; ~700 RPM; roller temperature ≤56 °C.
BirreriaTunnel di mash / bollitoreEffective 300 L; total 390 L; SUS304 inner 2.5 mm, outer 1.5 mm; cone head 3.0 mm; Rockwool 80 mm; glass manhole ~350 mm; 0.55 kW agitator; 160° cone; 12 kW electric heating; grant; CIP; PT100; mirror-polished interior.
BirreriaTunnel di raffreddamentoEffective 300 L; total 390 L; SUS304 inner 2.5 mm, outer 1.5 mm; 80 mm insulation; wedge-wire false bottom (~0.7 mm gap, 4 parts); 0.55 kW motor; grain door 330×430 mm; CIP; PT100; mirror-polished interior.
BirreriaVasca idromassaggioEffective 300 L; total 390 L; SUS304 inner 2.5 mm, outer 1.5 mm; 80 mm insulation; 350 mm manhole; sight tube; tangential inlet; CIP; PT100; mirror-polished interior.
BirreriaScambiatore di calore a piastreSUS304; exchange area ~4 m²; two-stage, six-process cooling; wort, tap water and glycol connections; hanging type design.
BirreriaPompa del mostoFlow ~3 m³/h; head ~24 m; 1.5 kW; inverter speed control; open impeller; tri-clamp inlet (~51 mm) and outlet (~38 mm); CE listed.
BirreriaFiltro luppoloSUS304; installed after whirlpool and before PHE; filtering thickness ~0.15 mm.
BirreriaSerbatoio di bilanciamento del mostoGlass and stainless construction; liquid level and pressure display; turbidity sensor equipped.
BirreriaPiattaforma dell'operatoreSUS304; brewhouse welded to platform; movable with wheels; step access; compact footprint.
Fermentazione“500L” Fermentation Tank (×2)Effective 300 L; total 375 L; SUS304 inner 2.5 mm, outer 1.5 mm; dish head 3.0 mm; PU 80 mm; 60° cone; stackable; single dimple jacket on cone and cylinder; design 0.4 MPa; working 0.2 MPa; PT100; CIP; side manway; sample valve; racking arm; dry-hop port.
FermentazioneAccessori per la fermentazionePRV valves; pressure gauges; sample valves; butterfly valves; solenoid valves (24 VDC, φ32 mm); carbonation stones (~φ38 mm); PT100 probes; transmitters; beer tubes; pipework for CIP and wort.
RaffreddamentoSerbatoio del glicoleEffective 800 L; gross 880 L; SUS304 inner 3.0 mm, outer 2.0 mm; PU 80 mm; dimple jackets with glycol in/out; 400 mm manway; sight tube; full TIG welds; SUS304 legs.
RaffreddamentoRefrigeratore a glicoleApprox. 3 HP; power ~3.2 kW; capacity ~13,115 kcal/h; refrigerant R407C; brand SENS; CE listed.
RaffreddamentoPompa per glicoleFlow ~3 m³/h; power ~0.75 kW; CE certification; circulates glycol between tank and jackets.
RaffreddamentoTubazioni di raffreddamento e isolamentoPPR pipelines and insulation supplied according to project layout and equipment arrangement.
CIPDisinfection & Alkalinity TanksGross 65 L; working 50 L; SUS304; 2.5 mm wall thickness; alkalinity tank with 3 kW electric heating; flat-bottom circular design.
CIPPompa e controller CIPSUS304 CIP pump ~3 m³/h; stainless control cabinet (~350×350 mm); sanitary 304 piping and valves.
ControlloSistema di controllo PIDMiller, brewhouse, fermenting and cooling wall cabinets; Yudian PID controllers; Schneider CE-listed components; English wiring diagram; English operation manual; fuse & overload protection for all motors.
Riempimento6-6 Riempitore e tappatore di bottiglieSemi-automatic; PID touchscreen; 6 filling heads & 6 capping heads; ~500 BPH; single-phase power (~30 W); isobaric filling; CO₂ purge and pressure stabilization sequence.

300L Brewery Equipment Details

3 9 1 scaled Used 300L Brewery Equipment
3 8 scaled Used 300L Brewery Equipment
1 22 1 scaled Used 300L Brewery Equipment
1 25 1 scaled Used 300L Brewery Equipment
1 23 1 scaled Used 300L Brewery Equipment
1 9 scaled Used 300L Brewery Equipment
1 16 1 scaled Used 300L Brewery Equipment
1 2 scaled Used 300L Brewery Equipment
