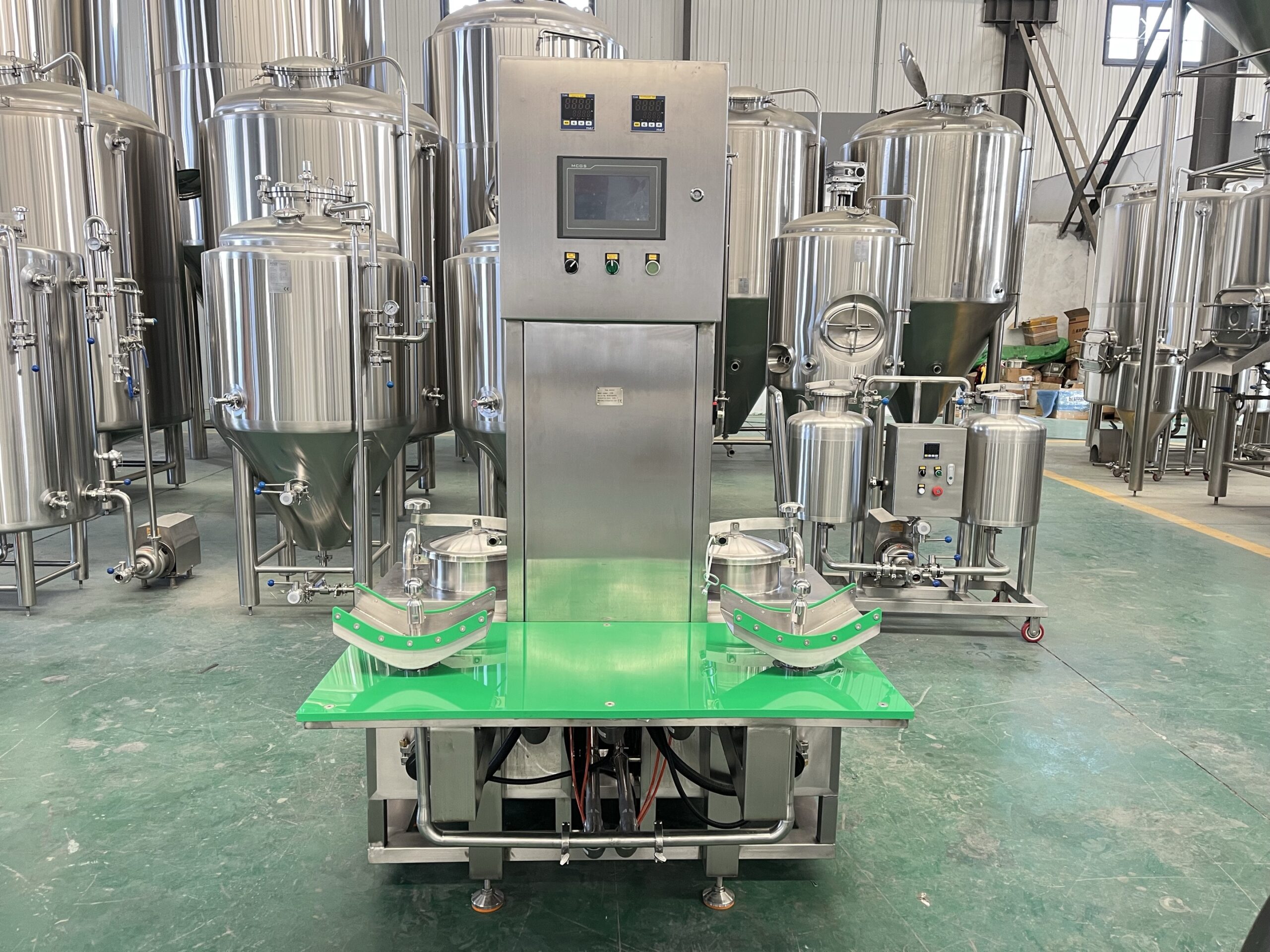

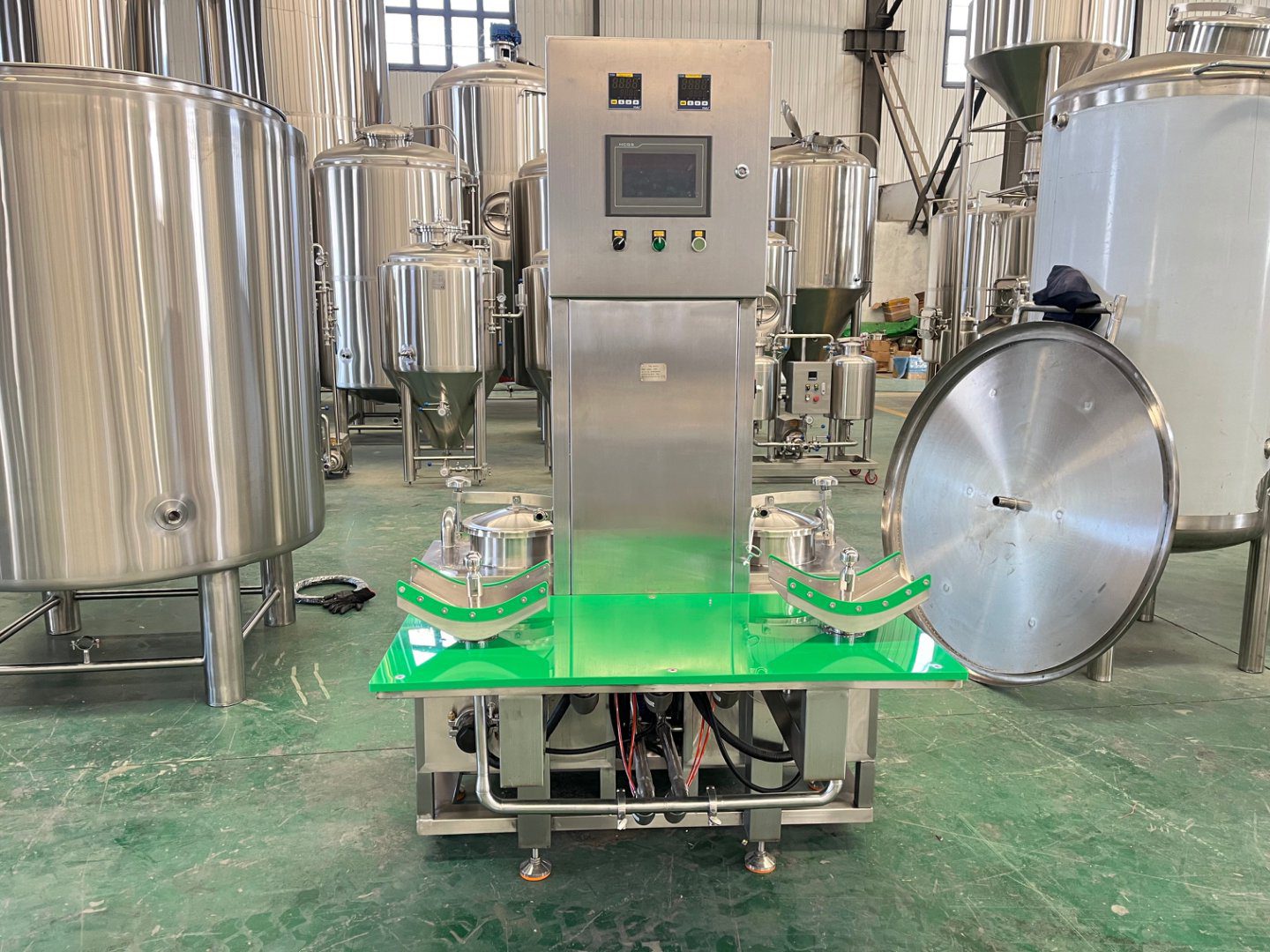

The 2-Heads Cask Washing Machine is a compact and efficient solution designed for thorough cleaning and sanitation of beer kegs and casks. Equipped with dual washing stations, it enables simultaneous processing of two kegs, significantly improving operational efficiency for small to medium-sized breweries. The system integrates multi-stage cleaning procedures including hot water rinsing, caustic and acid circulation, and optional steam or sterile water sterilization to ensure optimal hygiene standards. Built with high-quality SUS304 stainless steel, it offers excellent durability, corrosion resistance, and easy maintenance. With automated control and user-friendly operation, this machine ensures consistent cleaning performance, reduces labor intensity, and prepares kegs perfectly for the subsequent filling process.
2-Head Cask Keg Washing Machine built on an industrial MICET design, adapted to your real project.
The 2-Heads Cask Washing Machine is designed for efficient and hygienic cleaning of stainless steel casks used for beer, kombucha, and other beverages. With dual washing stations, it ensures stable and thorough cleaning performance, making it ideal for small-scale breweries, craft producers.
Each cask washing machine undergoes strict inspection, cleaning, and testing before delivery. Key components such as valves, pipelines, and control systems are carefully checked to ensure reliable operation, hygienic performance, and long service life. We offer 1-year free warranty, during which all necessary replacement parts are provided free of charge.
While maintaining a robust core structure, the system supports customization of washing programs, heating methods, and control units. This flexibility allows the equipment to adapt to different keg types, cleaning requirements, and production needs, providing a cost-effective and scalable solution.
The 2-Head Cask Keg Washing Machine is suitable for efficient cleaning and sanitation of casks in breweries, pubs, and beverage production facilities, ideal for small to medium-scale operations.
| Item | Specification |
|---|---|
| Machine overall dimensions | 1310 × 1550 × 1970 mm |
| Power | 3 kW |
| Production capacity | 80–100 kegs/hour (20L) |
| Cleaning method | Inverted washing |
| Air pressure | 0.6 – 0.8 MPa |
| CO₂ pressure | 0.4 – 0.6 MPa |
| Cylinder valve pressure | 0.4 – 0.5 MPa |
| CO₂ back pressure valve | 0.15 – 0.2 MPa |
| Air flush valve pressure | 0.2 MPa |
| Steam pressure | 0.2 MPa |
| Machine structure | Frame, electrical control system, pneumatic system, pipeline system |
| Operation | Adjustable parameters without shutdown |
| Pipeline design | Straight-line design with strong cleaning performance |
| Valves | Pneumatic double-acting angle seat valves |
| Water tanks | 3 tanks (hot water, caustic, acid) |
| Washing programs | 2 programmable cleaning cycles |
| Pumps | High-quality industrial pumps |
| Temperature control | Automatic temperature control system |
To prepare this 2-Head Cask Keg Washing Machine for a new project, we followed a structured and quality control process.
Design 2-Heads Cask Washing Machine according to customer requirements, including keg type, capacity, and production layout to ensure efficient operation.
Key components are manufactured using high-quality stainless steel and precise machining processes to ensure durability, hygiene, and stable filling performance.
All mechanical parts, filling valves, pipelines, and control systems are carefully assembled to ensure accurate and reliable operation.
The machine is thoroughly tested for filling accuracy, pressure control, and operational stability to ensure consistent performance during cask washing.
After final inspection, the machine is documented and securely packed to ensure safe transportation and delivery to the customer.
Accordingly to your filling plan and timeline, we will prepare a detailed quotation for a 2-Head Cask Keg Washing Machine, including configuration, pricing, delivery time, and shipping method.

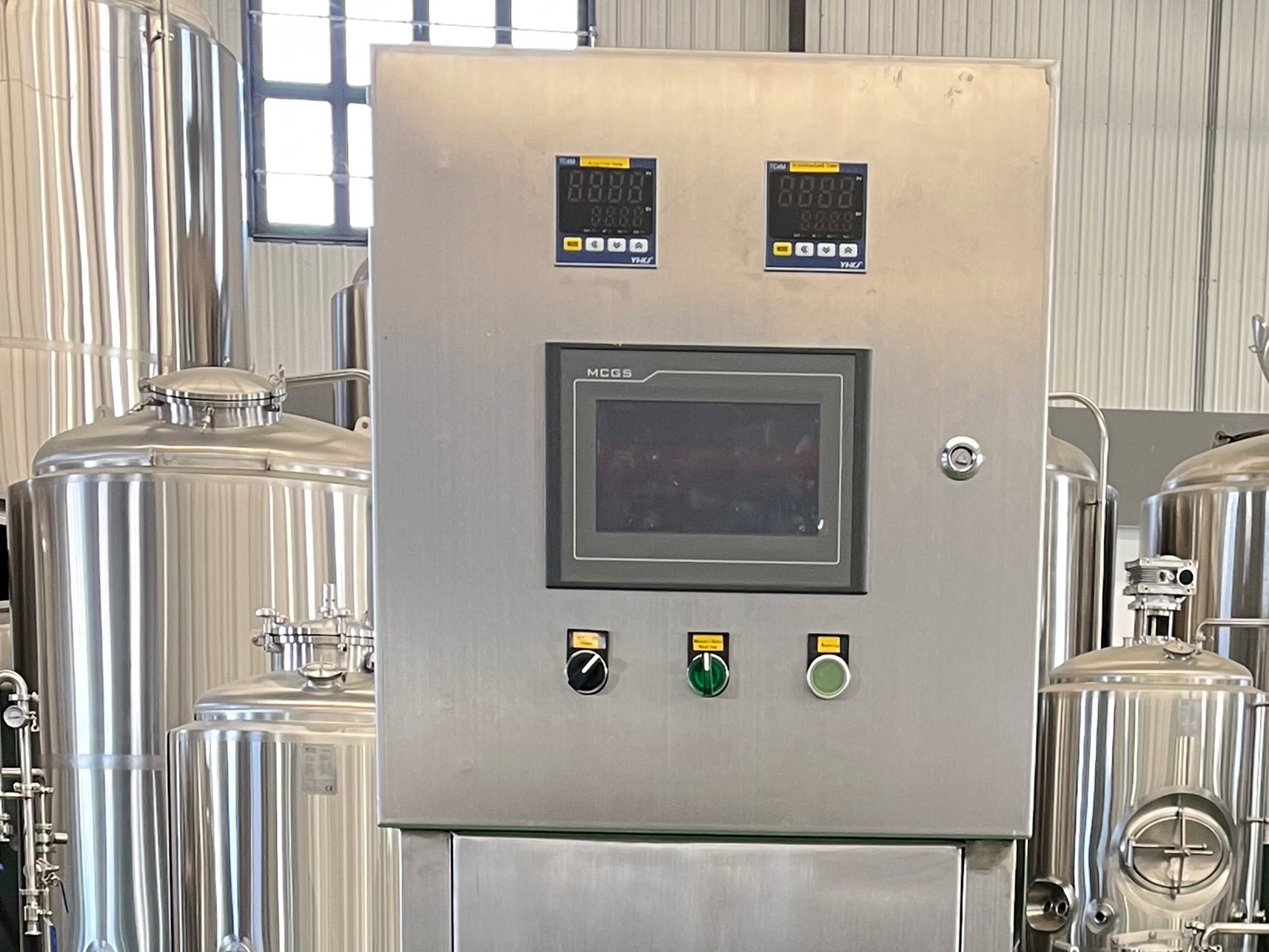

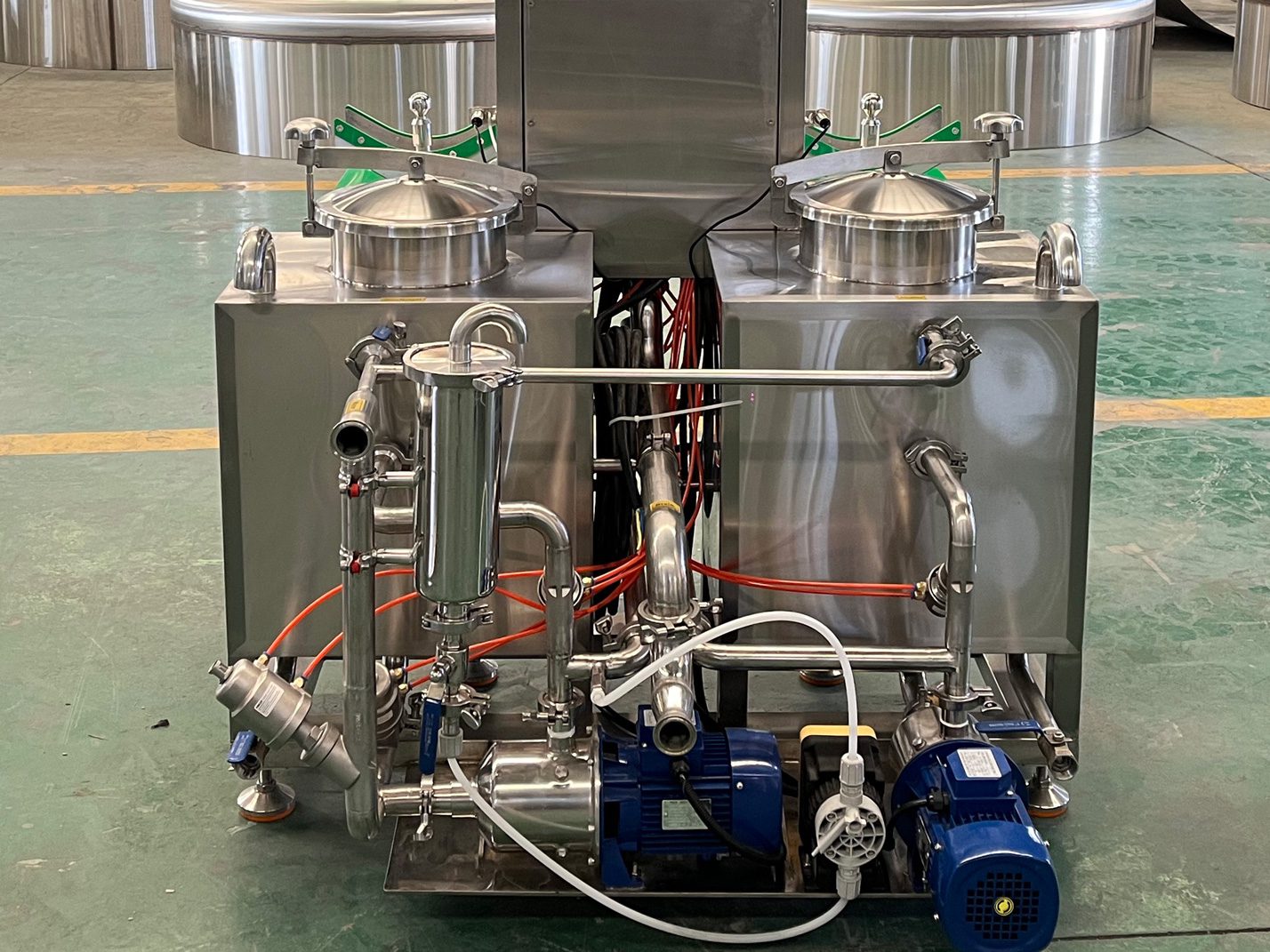

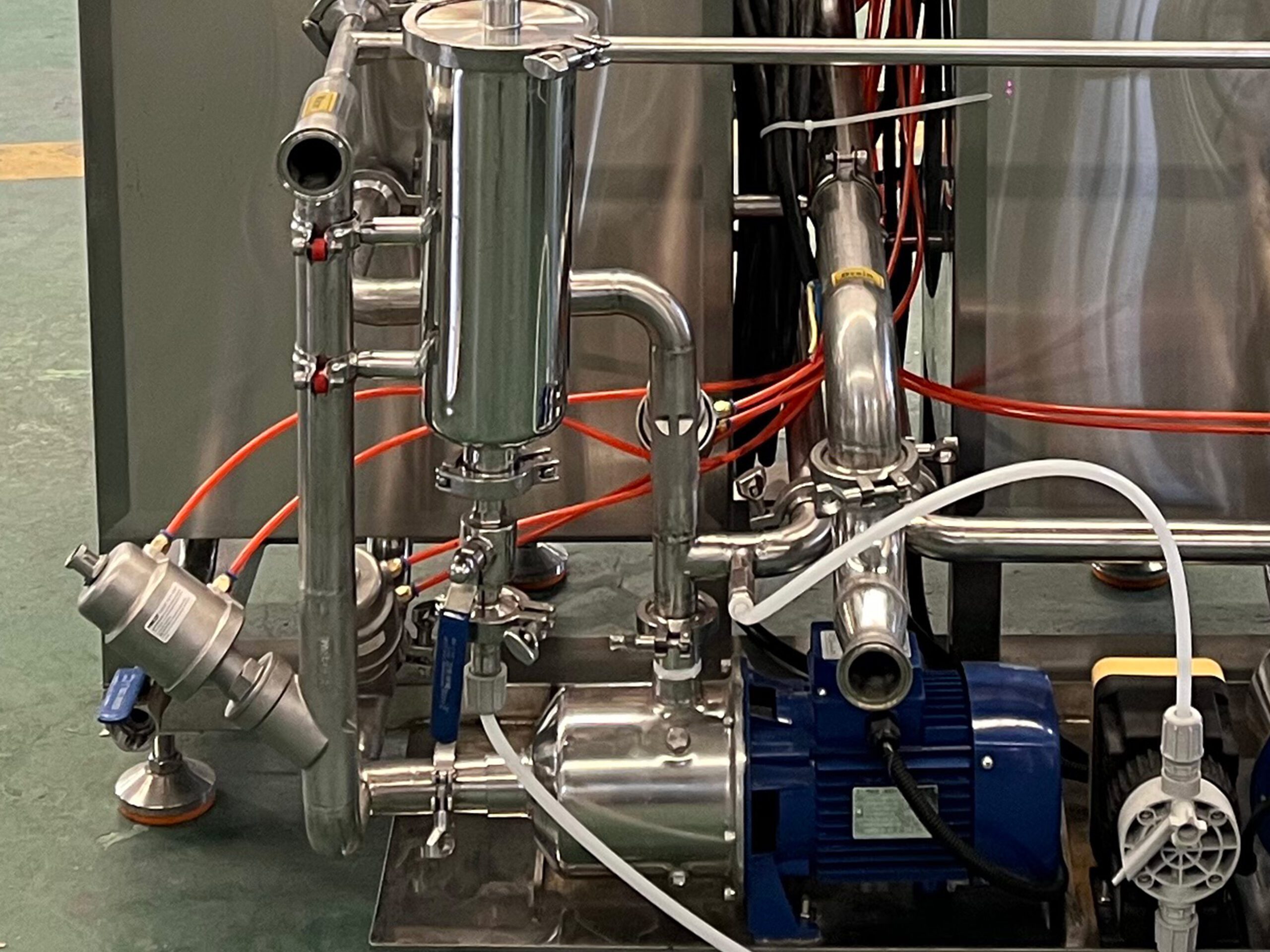

This Cask Keg Washing Machine includes dual washing heads, hot caustic circulation, acid and water rinsing system, CO₂ or compressed air purging system, CIP-compatible sanitary pipeline, and a PLC control panel for fully automatic cleaning cycles. The machine is designed for efficient internal and external keg cleaning, ensuring high hygiene standards and stable performance for brewery and beverage production lines.
If required, we can also provide technical support for layout design, installation, and commissioning, ensuring smooth integration into your production facility.
